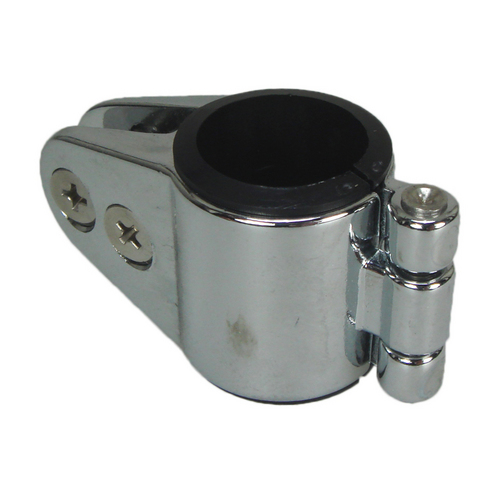

Chrome plated and brass split jaw canopy bar clamps that provides pivoting support for additional canopy bars when fitting to a non-removable rail or bar.
These traditional split jaw canopy (hood) bar clamps are designed to be fixed to non-removable rails or bars on board to support an additional canopy bar pivoting from the canopy bar clamp.
The opening jaw of this hood fitting allow you to place a canopy pivoting point on to a fixed handrail, push pit rail or support bar without removing the fixed rail. The jaw is held firm together with two locating screw threads that can be loosened with a Philips screw driver and spread apart to 120mm. Once the split jaw clamp is in position around the desired bar simply close and tighten the locating screw. When tight the clamp allows you to pivot a canopy bar from the pivoting hole.
The split jaw canopy clamps can be fitted to 20mm, 22mm and 25mm external diameter hood bars. Plastic spacers are provided for the required size that can be added or removed depending on the application.

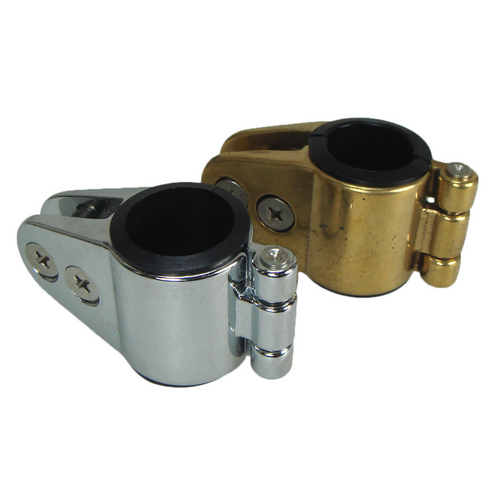

| HF618 | HF618A | |
| Finish | Chrome | Brass |
| Height | 33mm | |
| Width | 29mm (fully open 120mm) | |
| Depth | 62mm | |
| Canopy Bar Hole Diameter | 20mm (3/4"), 22mm (7/8") & 25mm (1") | |
| Connecting Bar Sot Width | 7mm |
7mm |
