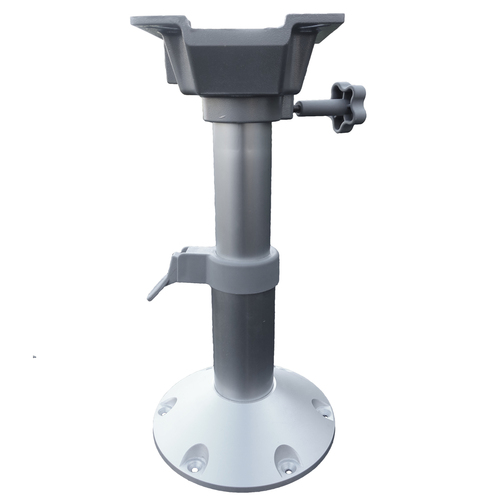

Adjustable Seat Pedestals
Anodised aluminium adjustable height seat pedestal with seat swivel & lock seat support and universal fixing plate for boat helm seats.
Add to your basket...
Adjustable Seat Pedestals Information
This height adjustable seat pedestal is constructed from anodised aluminium and can be raised or lowered for optimum seat position. The lock and swivel seat support on top allows for the fitting of a helm seat. Connecting your seat to the mount is made easy with the seat connecting slots on the top, each measuring 30mm x 8mm with the ability to fix seats with holes between 115mm - 200mm. Seats could also be attached using a plywood base if the holes to not marry up or further height is required.
An easy pull locking tab helps to secure and release the adjustable height mechanism. When released the pedestal can be lowered and raised to your liking, locking in place when the tab is pressed into position. With a seat swivel and lock you are also able to select a suitable seating position or allow the seat to rotate through 360 degrees. The hand twist lock can be tightened to stop the swivel when necessary.
Mounting the boat seat pedestal to the floor can be completed using bolts through the six counter sunk fixing holes on the circular base support.
Adjustable Seat Pedestals Specification
|Height when Lowered||450mm|
|Height when Raised||640mm|
|Base Fixing Bolts||100mm|
|Seat Support Length||170mm|
|Seat Support Width||170mm|
|Seat Support Fixing Hole Length||30mm|
|Seat Support Fixing Hole Width||8mm|
|Seat Support Connection||115 - 200mm|
|Seat Connections suitable used with||115 - 200mm|
