Digital Multi Meter

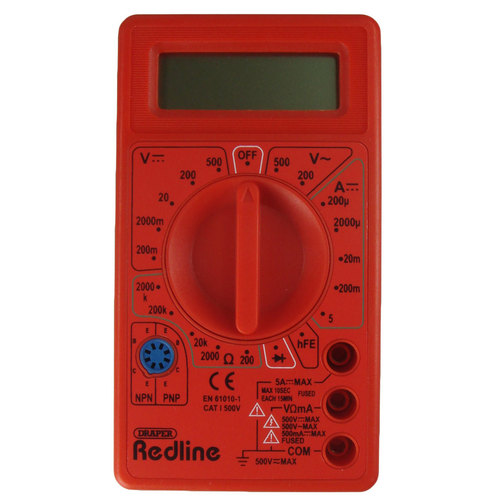

Draper Digital Multi Meter

A compact pocket sized Multimeter for measuring DC & AC voltage, DC current, resistance, diodes and transistor Hfe. With a clear LCD screen and twenty position rotary dial, leads & battery.

Add to your basket...

Digital Multi Meter (CM835)

Price:
£13.50
Quantity:

Draper Digital Multi Meter Information

A compact pocket sized Multimeter for measuring DC & AC voltage, DC current, resistance, diodes and transistor Hfe. With a clear LCD screen and twenty position rotary dial, leads & battery.



Draper Digital Multi Meter Specification

Height 125mm
Width 68mm
Depth 25mm
DC Voltage 200mv / 2000mv / 20v / 200v / 500v
Accuracy Between + or - 0.5% - 1.2% depending on setting
Input Impedance 1MΩ
Maximum Input 500v DC

AC Voltage 200v / 500v
Accuracy + or - 1.2%
Input Impedance 1MΩ
Maximum Input 500v AC
Frequency Range 45Hz - 450Hz

DC Current 200A / 2000A / 20mA / 200mA / 5A
Accuracy + or - 2.0% (200mA) / + or - 2% (5A) / + or - 1.8% (other ranges)
Overload Protection 500mA/250v Fused, 5A/250v Fused

Resistance 200Ω / 2000Ω / 20KΩ / 200KΩ / 2000KΩ
Accuracy + or - 1.0%
Overload Protection 220v DC / AC <15 seconds
Battery 1x 9V (included)
Weight 156g
Cable Length 750mm
