MG Duff Magnesium (Fresh Water) 'Collar' Shaft Anodes
  • MG Duff Magnesium (Fresh Water) 'Collar' Shaft Anodes
  • Magnesium (Fresh Water) 'Collar' Shaft Anode - 1 1/4"
  • Magnesium (Fresh Water) 'Collar' Shaft Anode - 25mm (1")

MG Duff Magnesium (Fresh Water) 'Collar' Shaft Anodes

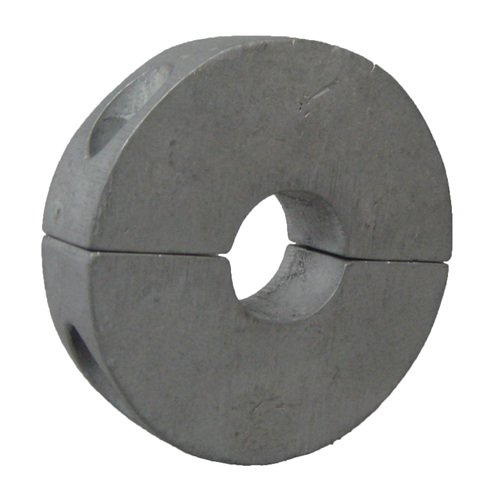

A magnesium propeller shaft anode for fresh water cathodic protection; particularly useful for limited propeller shaft space.

Add to your basket...

Magnesium (Fresh Water) 'Collar' Shaft Anode - 25mm (1") (SG036E)

You save:
£3.75 (11%)

Magnesium (Fresh Water) 'Collar' Shaft Anode - 31.7mm (1 1/4") (SG037C)

This product is currently not available for sale, it will be available again shortly.

MG Duff Magnesium (Fresh Water) 'Collar' Shaft Anodes Information

Our thoughts...

It is important to remember NOT to paint anodes when antifouling. Doing so will prevent the anode from working and may cause expensive problems.

This MG Duff magnesium shaft anode for use in fresh water conditions is designed to help guard against corrosion of underwater gear such as, propellers, shafts and rudders which are vital to the vessel and are expensive items to replace; the failure of a propeller or rudder could have disastrous consequences.

The shaft anodes split in half and clamp around the propeller shaft with two fixing bolts and is particularly useful where propeller shaft space is limited.

If corrosion is allowed to persist the effects can vary from pitting of propellers and shafts to the decomposition of the alloy. The failure of something as small and inexpensive as a split pin can result in the loss of the propeller.

Magnesium Boat Anode Specifications

  SG036E SG037C
Shaft Diameter 25mm (1") 31.7mm (1 1/4")
Diameter 80mm 80mm
Length 20mm 20mm

Underwater corrosion control is an essential maintenance task and something to consider. It is relatively easy to replace existing anodes and install new cathodic protection systems if required.

What is cathodic protection?

Cathodic protection is an electrochemical process which halts the natural reaction (corrosion) of metals in a particular environment by superimposing an electrochemical cell more powerful than the corrosion cell. Sacrificial Anodes are fitted or bonded to the metal to be protected which in turn as it has a greater electrical potential than the anode material becomes cathodic and causes the anode to waste instead of itself. In a correctly installed cathodic protection system the only corrosion occurs to the sacrificial anode which is replaceable. The number and size of anodes is determined by the type of material and the surface area being protected.

Which anode should I choose?

As a general rule owners should fit the anodes suitable for the environment they most regularly berth in and the following list provides a useful guide:

  • Fresh water - Fit Magnesium anodes
  • Brackish water - Fit Aluminium anodes (Brackish water is a mixture of fresh water and salt water, commonly associated with estuary waters).
  • Salt water - Fit Zinc or Aluminium anodes

Not all anodes are suitable for every environment, for example the surface of a zinc or aluminium anodes will if left in fresh water for some time become covered with an off white crust of oxide which effectively seals the anode and stops it working even when returned to salt water.

Zinc anodes suffer a similar problem even in brackish conditions whereas aluminium will continue to operate effectively in river estuaries and other areas of brackish water indefinitely. The consequences of this passivation of the anode are that the next most anodic item within the anode bonding system will start to sacrifice itself which could of course be very serious.

Owners must be aware of the effects that this may have on their boats and fit the correct cathodic protection system to avoid corrosion.

Please note: Magnesium anodes are not suitable for wooden hull vessels as they can damage the timber. Please contact us for further information.
