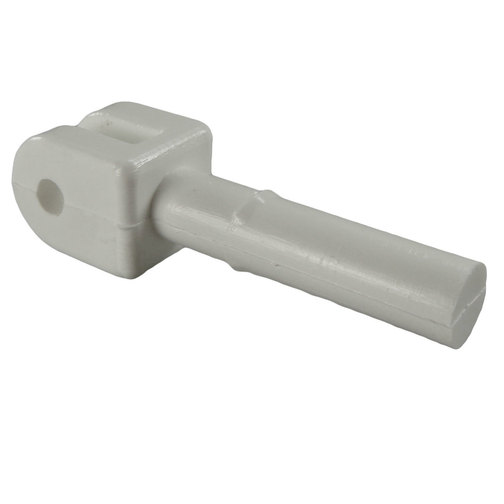

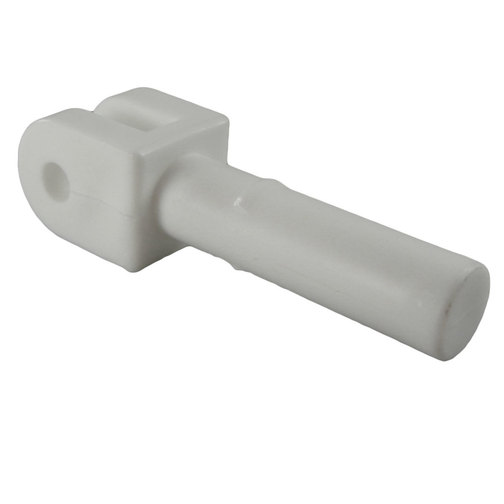

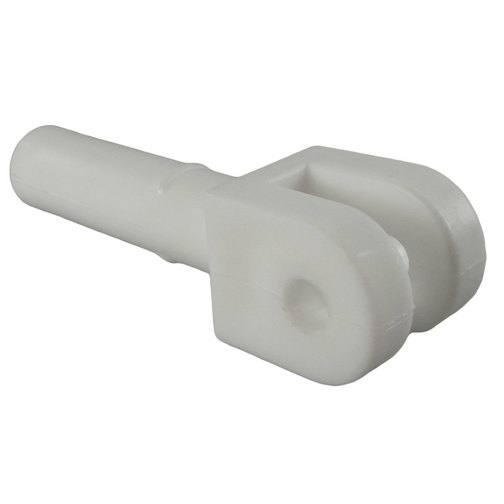

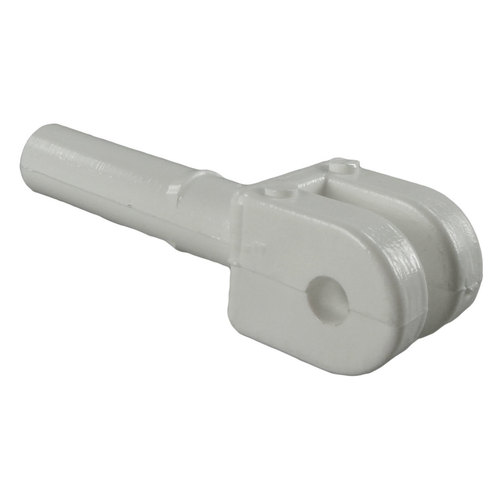

Nylon bimini pins provide a quick release pivot point for bimini top bars which slot into bimini sockets for support for bimini tops.
Nylon bimini pins provide a quick release pivot point for bimini top bars which slot into bimini sockets for support for bimini tops.
The plastic bimini pins slot into Nylon Bimini Sockets and clip into Nylon Bimini Bases with the fork clip to provide a pivot point for bimini top bars.
| HF752 | HF762 | |
| Finish | White Nylon | White Nylon |
| Length (Recessed) | 74mm (48mm) | 74mm (47mm) |
| Pin Diameter | 12mm | 13mm |
| Fork Clip Gap | 6mm | 7mm |
| Fork Clip Width | 21mm | 22mm |
| Fork Clip Depth | 20mm | 20mm |
| Fork Clip Hole Diameter | 6mm | 6mm |
| Suitable for | 20mm Series Bimini Fittings | 22mm Series Bimini Fittings |
