Brass Butt Hinges

Economy brass hinge with three counter sunk fixing holes on each hinge leaf.

Brass Butt Hinges 38 x 22mm (1 1/2" x 7/8")

Part #: FF400A
Availability: In Stock
£0.98

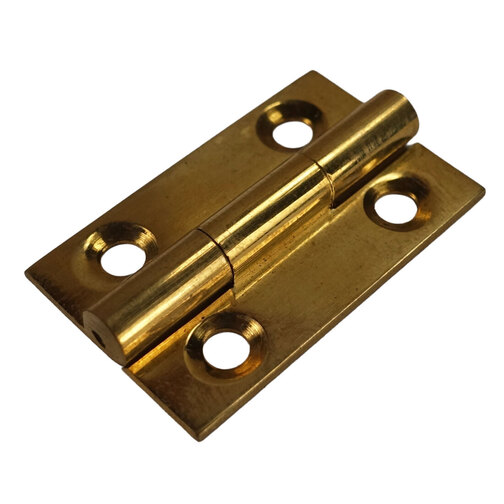

Brass Butt Hinge 38 x 24mm (1 1/2" x 15/16")

Part #: FF400A/A
Availability: In Stock
£0.80
SRP £1.14
You Save £0.34 (30%)

Brass Butt Hinges 51 x 29mm (2" x 1 1/8")

Part #: FF400B
Availability: In Stock
£2.75

Brass Butt Hinges 64 x 35mm (2 1/2" x 1 3/8")

Part #: FF400C
Availability: In Stock
£4.51

Brass Butt Hinges 76 x 41mm (3" x 1 5/8")

Part #: FF400D
Availability: Discontinued
This product has been discontinued and is currently unavailable.

Brass Hinges 100 x 60mm (4" x 2 3/8")

Part #: FF400E
Availability: Discontinued
This product has been discontinued and is currently unavailable.

Details

Brass Butt Hinges

These economy brass hinges are extruded from brass with a brass pin running through the knuckle. Each economy brass hinge features three counter sunk fixing holes on each hinge leaf.

The brass hinges have an 'uncranked' knuckle design with tapered leafs (this is the most common type) and are ideally suited for boat cupboard doors and covers. The brass pin is a 'secured in the knuckle' type which runs within the hinge knuckle and finishes flush at the top and bottom of the hinge.

Specification

  FF400A FF400A/A FF400B FF400C FF400D FF400E
Length 38mm (1 1/2") 38mm (1 1/2") 51mm (2") 63mm (2 1/2") 76mm (3") 100mm (4")
Width 22mm (7/8") 24mm (15/16") 29mm (1 1/8") 35mm (1 3/8") 41mm (1 5/8") 60mm (2 3/8")
Fixing Hole Centres 13mm 23mm 20mm 24mm 30mm 29mm
Screw Guage Size 4 Size 4 Size 4 Size 6 Size 8 Size 10
Quantity 1 1 1 1 1 1
Please Note

Measurements shown are open hinge sizes.
