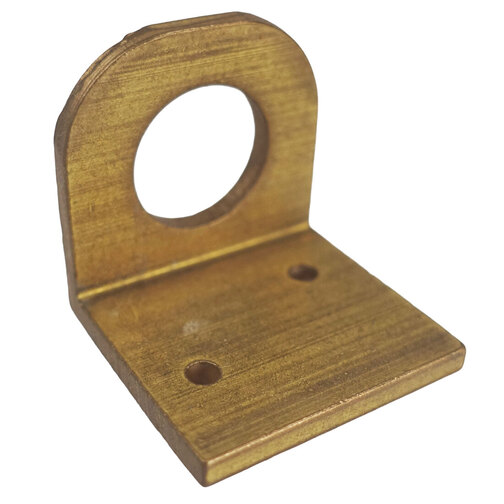

Brass 'L' shaped bulkhead compression fitting valve bracket supports valves (taps) to a firm surface so they can be used without risk of affecting or distorting pipelines.

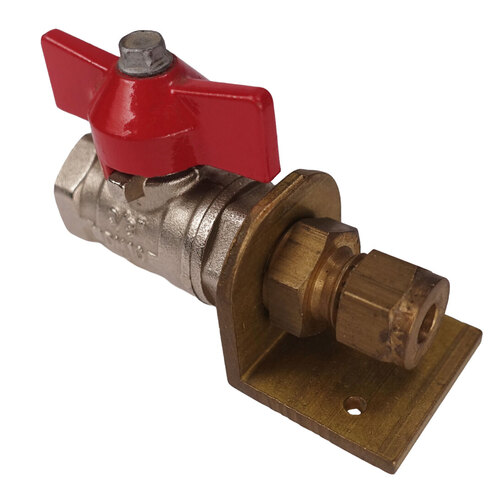

Brass 'L' shaped bulkhead compression fitting valve bracket supports valves (taps) to a firm surface so they can be used without risk of affecting or distorting pipelines with frequent use. It is essential to support compression fitting valve taps on fuel lines, as the process of 'twisting' the valves on and off can apply unwanted pressure to joints, potentially leading to leaks or wear and tear.
The valve brackets have offset fixing holes and one large hole for the adequate compression fitting. Note that the hole size on the bracket is generally described as the compression fitting thread size, not the actual diameter of the hole cut.
| PF5985 | PF5986 | |
| Size | 1/4" | 3/8" |
| Suitable for | 1/4" Valves & Compression Fittings | 3/8" Valves & COmpression Fittings |
| Hole Diameter | approximately 9/16" (14mm) | approximately 11/16" (17mm) |
| Fixing Hole Centres | 18mm | 21mm |
| Fixing Hole Diameter | 4mm | 3mm |
| Base Length | 30mm | 32mm |
| Base Width | 29mm | 32mm |
| Height | 30mm | 32mm |
