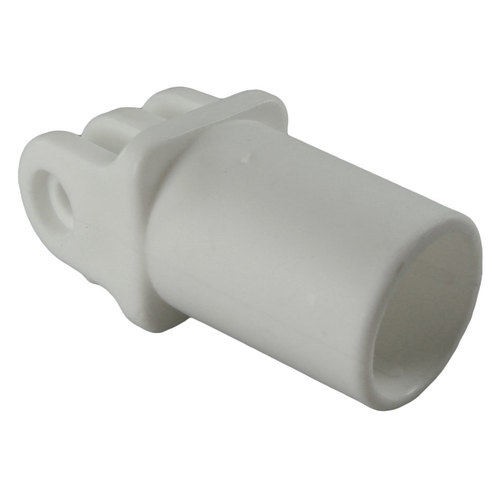

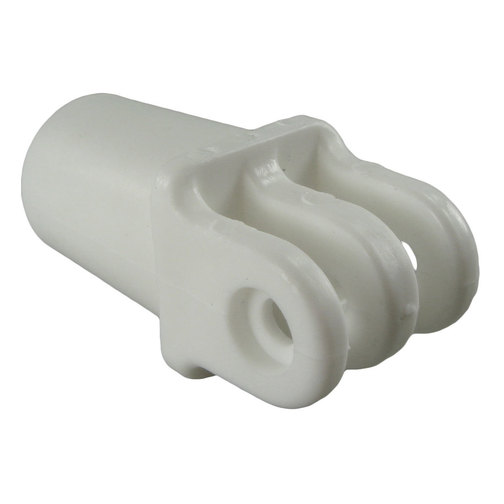

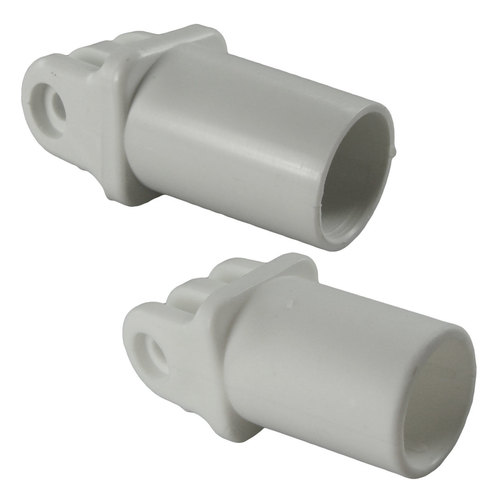

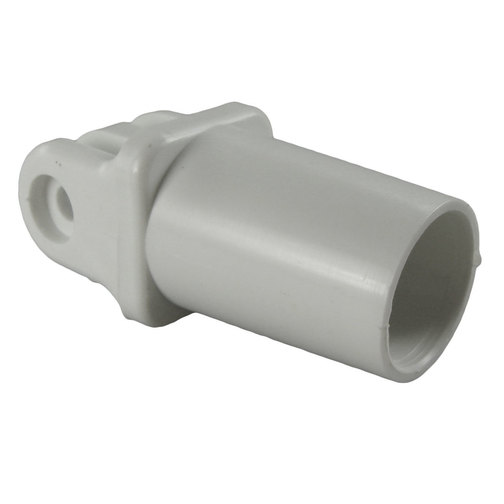

Nylon bimini bar bases that connect to bimini bar pins for pivoting and quick release of bimini tops and provide a socket for bimini bars.
Nylon bimini bar bases that connect to boat bimini pins for pivoting and quick release of bimini tops and provide a socket for bimini bars.
Each boat bimini bar base consists of a fork clip at one end so it can be attached to the Nylon Bimini Pins and a bar socket on the other so bimini bars can be insetred.
| HF753 | HF763 | |
| Finish | White Nylon | White Nylon |
| Internal Socket Diameter | 20mm | 22mm (7/8") |
| External Diameter | 25mm | 27mm |
| Wall Thickness | 2mm | 2mm |
| Height | 66mm | 66mm |
| Fork Clip Gap | 6mm | 6mm |
| Fork Clip Width | 29mm | 29mm |
| Fork Clip Depth | 29mm | 29mm |
| Suitable For | 20mm Series Bimini Fittings | 22mm Series Bimini Fittings |
