A replacement handle for Osculati round inspection covers and hatches and rectangular & square inspection covers and hatches with visible screws.
This product is currently out of stock, we hope to have it available soon. We can email you when it is back in stock.

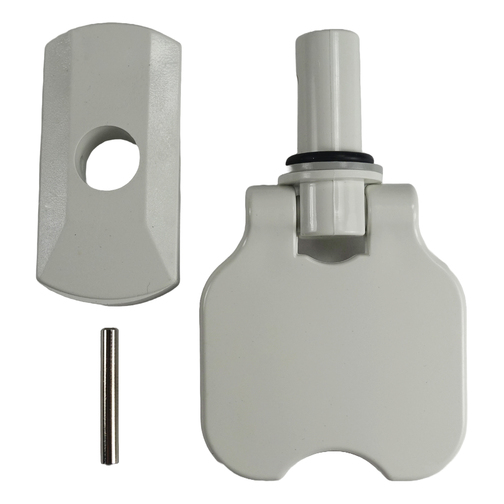

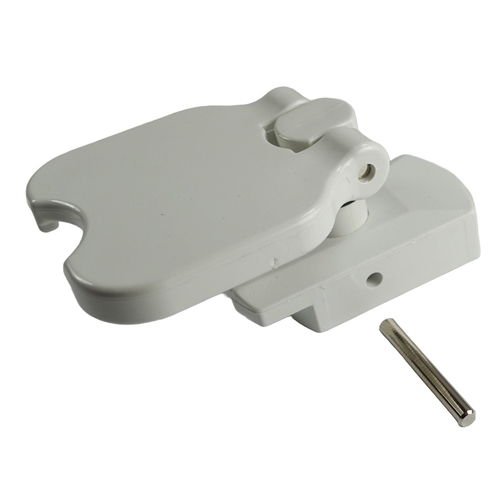

The Osculati Inspection Hatch Handle (L61) is a replacement handle for Osculati round inspection covers and hatches and rectangular & square inspection covers and hatches with visible screws. The spare latch and handle is a useful replacement in case your original handle snaps, becomes separated from the hatch cover or fails due to mechanical or weather damage.
The only difference between the Osculati L61 Handle and the Osculati L66 Handle is the length of the locking latch, the latch is 61mm long on the L61 handle and 66mm long on the L66 Handle. You must buy the right replacement for the correct type of hatch otherwise the latch will not engage properly.

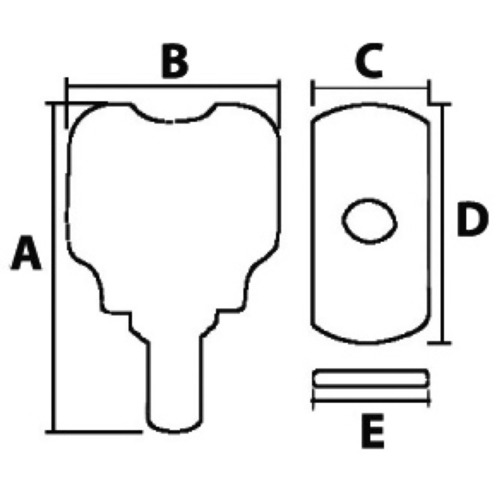

| Diagram Indication | ||
| Handle & Spindle Length | 95mm | A |
| Handle Length | 63mm | |
| Handle Width | 56mm | B |
| Spindle Diameter | 14mm | |
| Spindle Length | 30mm | |
| Latch Length | 61mm | D |
| Latch Width | 30mm | C |
| Pin Diameter | 4mm | |
| Pin Length | 30mm | E |
