A fuel pipe suitable for Mercury engine and fuel tank systems after 1998 complete with 3 meters of fuel line, one inline primer bulb and two female quick-connect connectors, one for the engine and one for the tank.
A fuel pipe suitable for Mercury engine and fuel tank systems after 1998 complete with 3 meters of fuel line, one inline primer bulb and two female quick-connect connectors, one for the engine and one for the tank.
It is important to select the correct fuel line and fuel line connectors for your particular engine and fuel tank installation. This outboard engine fuel line kit is suitable for most Mercury engines and fuel tank systems after 1998. Do check that your current fuel tank is compatible and has not been changed for something newer/different.
| Suitable for | Mercury Engines/Tanks after 1998 |
| Full Length | 3m |
| Length from Tank-to-Primer Bulb | 230mm |
| Length from Primer Bulb-to-Engine | 2670mm |

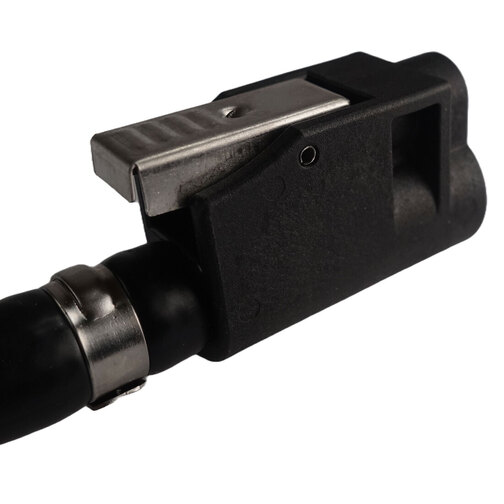

| Tank Connector Type | Quick-Connect |
| Tank Connector Length (to hosetail barb) | 45mm |
| Tank Connector Locating Peg Length | 22mm |
| Tank Connector Locating Peg Hole Diameter | 7mm |
| Tank Connector Fuel Barb Diameter | 8mm |

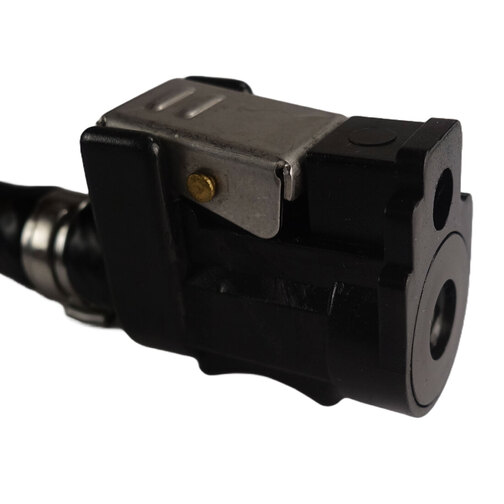

| Engine Connector Type | Quick-Connect |
| Engine Connector Length (to hosetail barb) | 37mm |
| Engine Connector Locating Peg Length | 15mm |
| Engine Connector Locating Peg Hole Diameter | 6mm |
| Engine Connector Fuel Barb Diameter | 8mm |
Fuel lines that have been connected or used in anyway are not returnable.
