A polished stainless steel rotary lifting handle for recess-fit mounting onto boards that require lifting for access such as engine bay covers and floorboards.
A polished stainless steel rotary lifting handle for recess-fit mounting onto boards that require lifting for access such as engine bay covers and floorboards. This floorboard lifting ring is easy to use by simply pressing down on one end of the lifting ring and rotating the handle through 180 degrees in order to lift, or vice-versa in order to store hidden away when not required.
The boat floorboard lifting handle can be installed as a flush finish with the surface using the hidden M4 fixing bolts and nuts supplied.

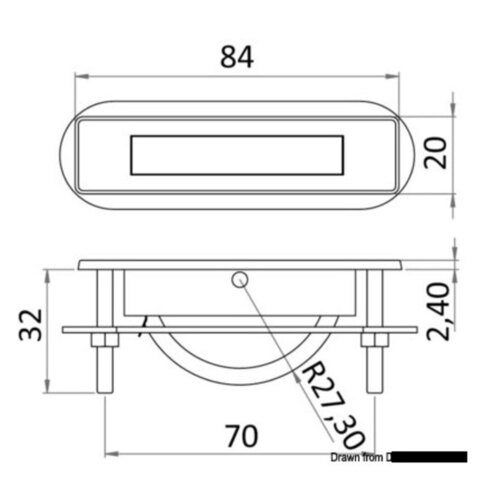

| Length (Flush Finish / Overall) | 84mm / 91mm |
| Width (Flush Finish / Overall) | 20mm / 28mm |
| Recess Height | 32mm |
| Height Handle Up | 27mm |
| Fixing Thread Size | M4 |
| Fixing Thread Height | 30mm |
