Osculati stainless steel 12 or 24 volt, RINA tested, LED boat navigation light for mounting on vertical surfaces for vessels up to 12m in length.
This product is not currently available, we hope to have it available soon.
This product has been discontinued.
These navigation lights have been type-tested (No. ELE112414CS) by the Royal Institute of Naval Architects (RINA); an international recognition of quality marine design and manufacture and NMMA certified for vessels up to 12m.
These AISI 316 Stainless steel 12 or 24-volt, RINA-tested, LED boat navigation lights are for mounting on vertical surfaces for vessels up to 12m (approximately 39ft) in length.

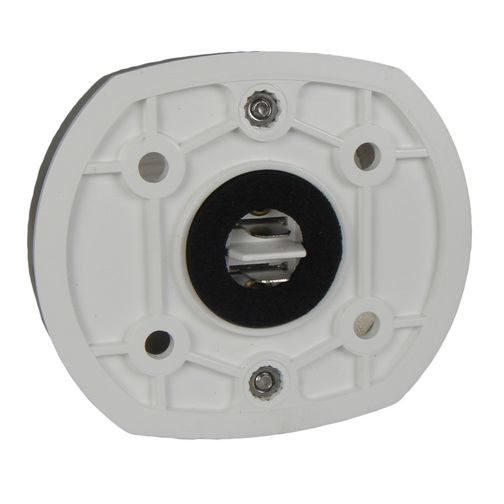

These Osculati LED boat navigation lights can be installed using the four concealed fixing holes that secure the base of the light to the boat. The front casing can be detached (by unscrewing the locating screws in the front) from the light base for bulb replacement meaning you do not need to take the whole light fitting off.
The electrical connection has two spade connectors positioned within a weather-resistant foam washer on the base of the light to help prevent water ingress and subsequent wear and tear.
These port and starboard navigation lights are commonly fitted to the smaller range of Interboat boats.
These navigation lights have been type-tested (No. ELE112414CS) by the Royal Institute of Naval Architects (RINA); an international recognition of quality marine design and manufacture and NMMA certified for vessels up to 12m.
| Our Part No. | LF470A | LF470B | LF470C |
| Price | £32.95 | £32.95 | £32.95 |
| Brand | Osculati | Osculati | Osculati |
| Manufacturers Part No. | 11.446.01 | 11.446.02 | 11.446.04 |
| Type | Navigation Light | Navigation Light | Navigation Light |
| Navigation Light Type | Port |
Starboard |
Stern |
| Voltage | 12V, 24V | 12V, 24V | 12V, 24V |
| Wattage | 0.8W | 0.8W | 0.8W |
| Lens Angle | 112.5º | 112.5º | 135º |
| Lens Colour | Red |
Green |
Clear |
| Lens Material | Plastic | Plastic | Plastic |
| Light Bulb Type | Festoon | Festoon | Festoon |
| Bulb Included | |||
| Bulb Technology | LED | LED | LED |
| Material | Stainless Steel | Stainless Steel | Stainless Steel |
| Material Type | A4 Stainless Steel (316) | A4 Stainless Steel (316) | A4 Stainless Steel (316) |
| Height | 62mm | 62mm | 62mm |
| Width | 72mm | 72mm | 72mm |
| Depth | 45mm | 45mm | 45mm |
