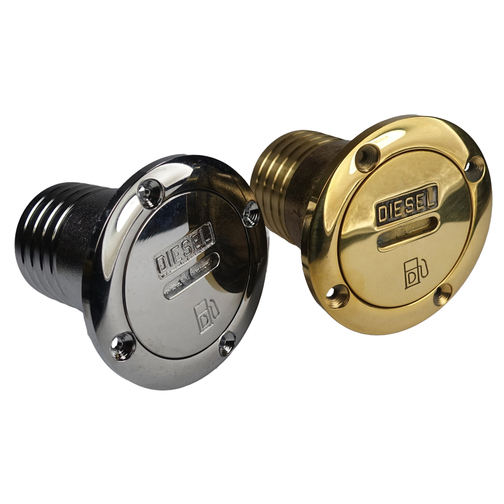

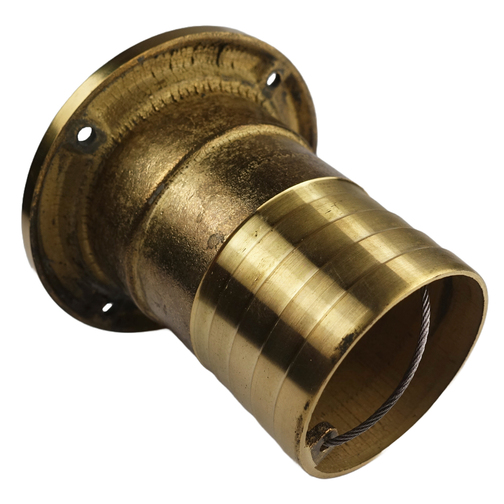

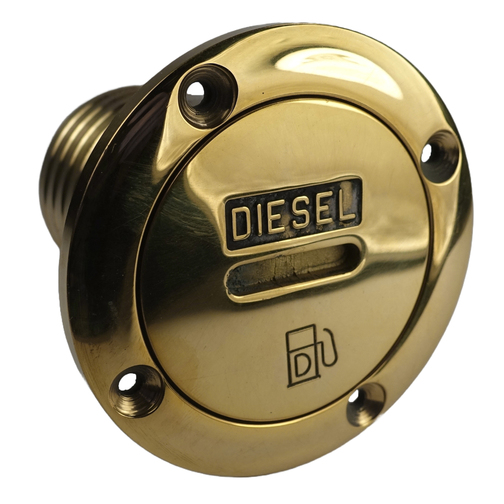

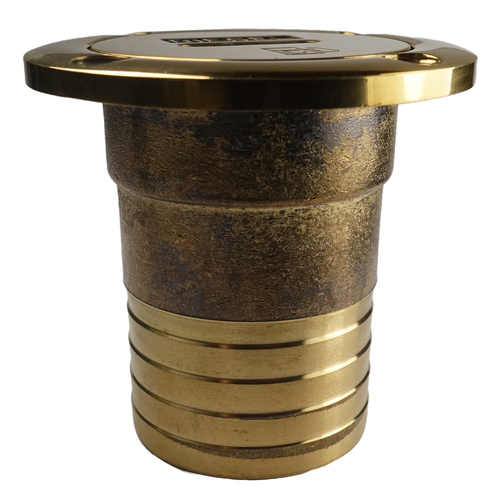

A boat diesel deck filler which is designed to be installed flush on the surface and finished with a 'Diesel' tag on the filler.
This product is currently out of stock, we hope to have it available soon. We can email you when it is back in stock.
A boat diesel deck filler which is designed to be installed flush on the surface and finished with a 'DIESEL' tag on the filler.
The screw cap has a slot in the top to help when twisting open or closed and the cap is secured via a wire to the filler unit to prevent losing the cap in the water. This wire is fitted with a ring connector so it compensates for the rotation of the cap when opening and closing so not to knot the security wire.
This flush deck filler has three counter-sunk fixing holes which help to ensure a secure fit.
| TA175A | TA175B | Diagram | |
| Finish | Chrome | Brass | |
| Base Diameter | 85mm | 85mm | D |
| Filler Base Diameter | 57mm | 57mm | D1 |
| Filler Length | 81mm | 81mm | H |
| Hosetail Length | 55mm | 55mm | H1 |
| Height from Deck | 6mm | 6mm | H2 |
| Filler External Diameter | 51mm (2") | 51mm (2") | P |
