British Seagull Outboard Amal 416 Carburettor Main Jets

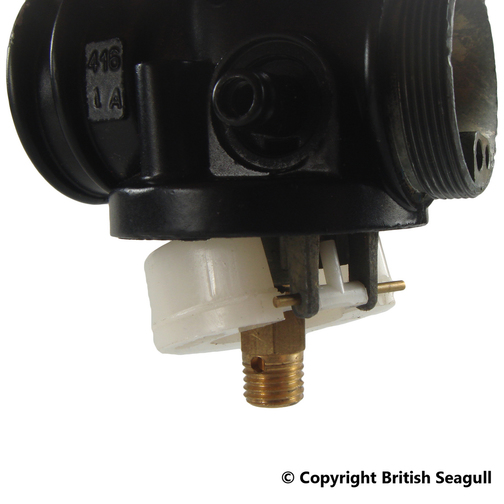

The British Seagull® Outboard Amal 416 Carburettor Main Jet injects the correct amount of fuel into the carburettor and sits in the bottom of the jet housing.

When replacing the carburettor main jet it is usual practice to exchange like for like. For example, if the main jet has '95' stamped on it, then replace with Main Jet No. 95 (CBN04022).

Which British Seagull Outboards is this suitable for?

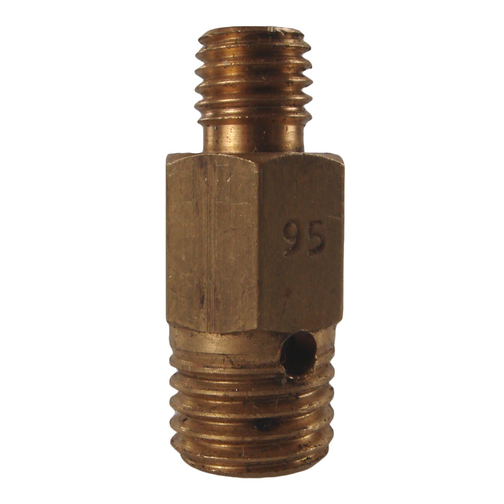

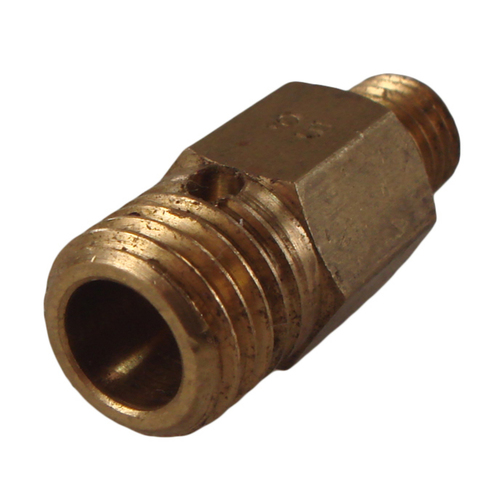

• CBN04022 - Main Jet No. 95 is the standard jet suitable for British Seagull Outboard engines fitted with the Amal 416 Carburettor including: AF, EF, FS, SEF, TSEF, AFPC, SEFPC, TSEFPC, EFPW, AFPW, EGFPW, WSC, ESC, WSPC, ESPC & EFNR, some very late EFPC & WS (not so common as the EFPC) and QB Series KC, KCL, O, OL & CL.

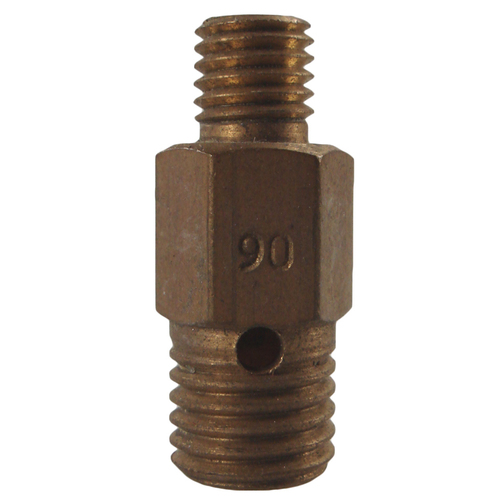

• CBN04023 - Main Jet No. 90 is sometimes used British Seagull Outboard engines fitted with the Amal 416 Carburettor including: AF,& EF, FS, SEF, TSEF, AFPC, SEFPC, TSEFPC, EFPW, AFPW, EGFPW, WSC, ESC, WSPC, ESPC & EFNR and some very late EFPC & WS (not so common as the EFPC).

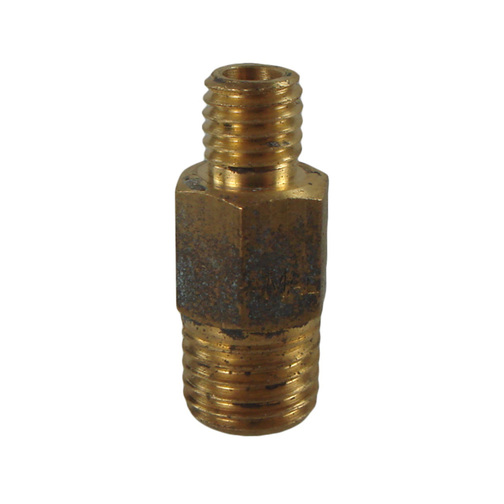

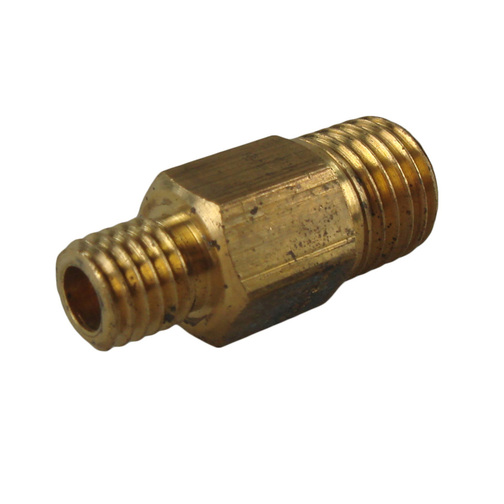

• CBNCU022 - Main Jet No. 100 is used on QB Series Curlew, C, engines only.

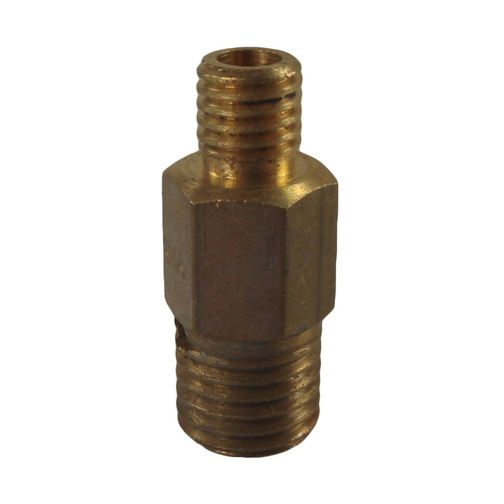

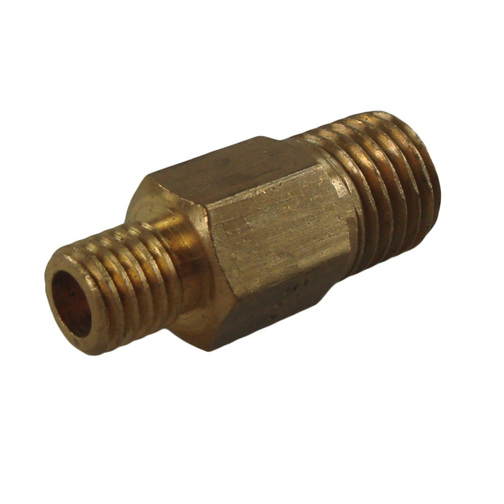

• CBNKF022 - Main Jet No. 115 Is used on QB Series Kingfisher, K & KL engines only.
