British Seagull Outboard Model 110/90 Propeller Retaining Collar
  • British Seagull Outboard Model 110/90 Propeller Retaining Collar
  • British Seagull Outboard Model 110/90 Propeller Retaining Collar
  • British Seagull Outboard Model 110/90 Propeller Retaining Collar

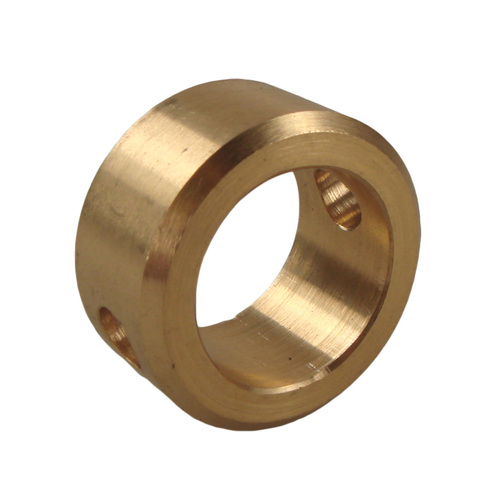

  • British Seagull Outboard QB Series 1/2" Propeller Retaining Collar

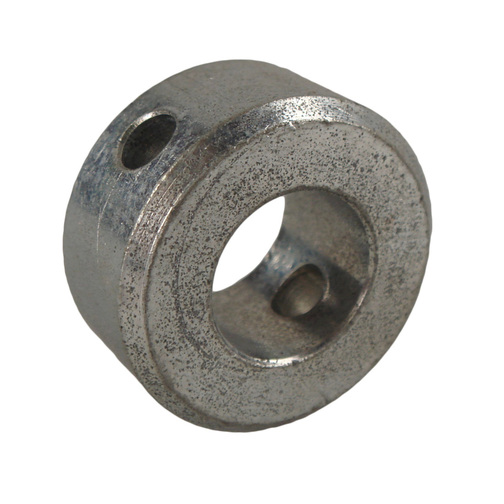

  • British Seagull Outboard QB Series 9/16" Propeller Retaining Collar

British Seagull Outboard Model 110/90 & QB Series Propeller Retaining Collar

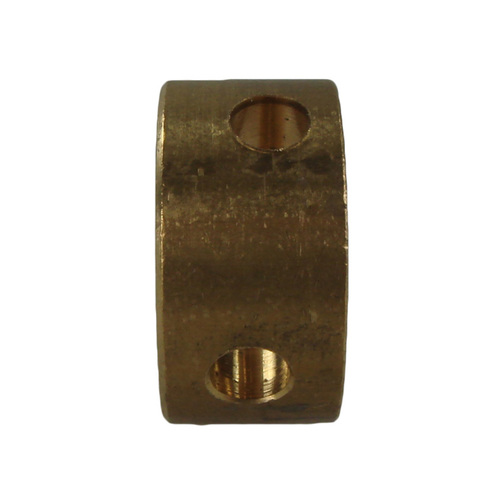

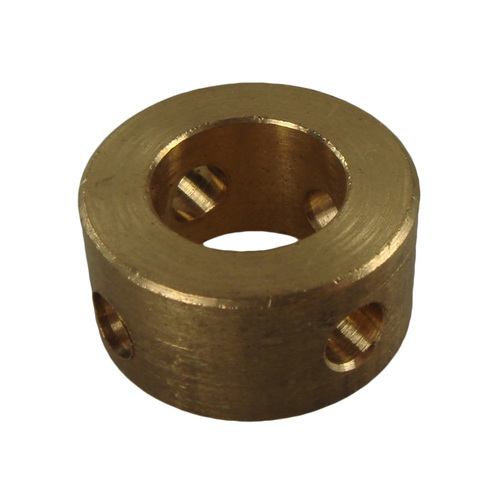

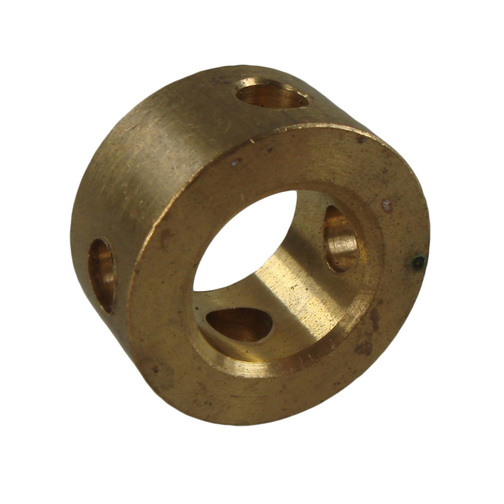

The British Seagull® Model 110/90 & QB Series Propeller Retaining Collar locates on to the propeller shaft, held in place by the collar pin, to secure the propeller on to the propeller shaft.

British Seagull Logo

Add to your basket...

British Seagull Outboard Model 110/90 Propeller Retaining Collar (GBX10013)

By: British Seagull, Part No.: GBX10013
Price:
£11.53
Quantity:

British Seagull Outboard QB Series 1/2" Propeller Retaining Collar (GBX70013)

By: British Seagull, Part No.: GBX70013
Price:
£14.75
Quantity:

British Seagull Outboard QB Series 9/16" Propeller Retaining Collar (GBXKF013)

By: British Seagull, Part No.: GBXKF013
Price:
£11.53
Quantity:

British Seagull Outboard Model 110/90 & QB Series Propeller Retaining Collar Information

The British Seagull® Model 110/90 & QB Series Propeller Retaining Collar locates on to theBritish Seagull Outboard Propeller Shafts, held in place by the British Seagull Outboard Collar inside Propeller Pin, to secure the British Seagull Outboard Propellers on to the British Seagull Outboard Propeller Shafts.

Which British Seagull Outboards is this suitable for?

  • GBX10013 - This British Seagull Outboard part is suitable for Model 110/90 EFNR engines only.
  • GBX70013 - This British Seagull Outboard part is suitable for QB Series Kingfisher & Osprey engines and Model 170 engines fitted with the 1/2" propeller shaft only.
  • GBXKF013 - This British Seagull Outboard Part is suitable for QB Series Kingfisher engines fitted withe the 9/16" diameter propeller shaft only.

British Seagull Outboard Model 110/90 & QB Series Propeller Retaining Collar Specification

  GBX10013 GBX70013 GBXKF013
Suitable for Model 110/90 engines QB Series Kingfisher & Osprey engines fitted with 1/2" diameter propeller shaft. QB Series Kingfisher engines fitted with 9/16" propeller shaft.
Internal Diameter 1/2" 1/2" 9/16"
External Diameter 7/8" 1" 1"
