Canopy Hinge Mount

Stainless steel canopy hinge mount that compensates for different angles of decks and coamings.

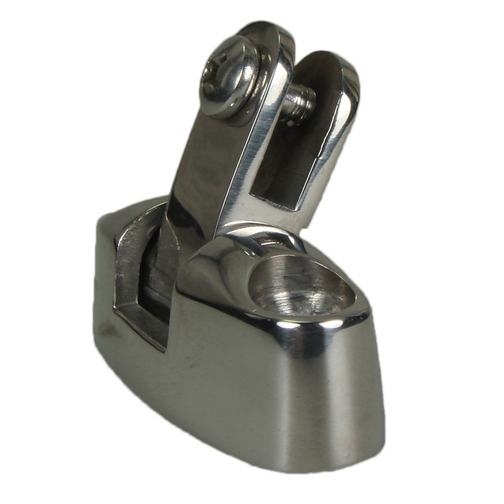

Canopy Hinge Mount - Screw Fit

Part #: HF626
Availability: In Stock
£14.95

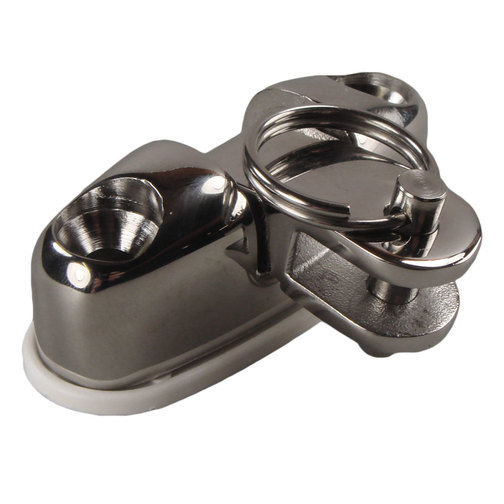

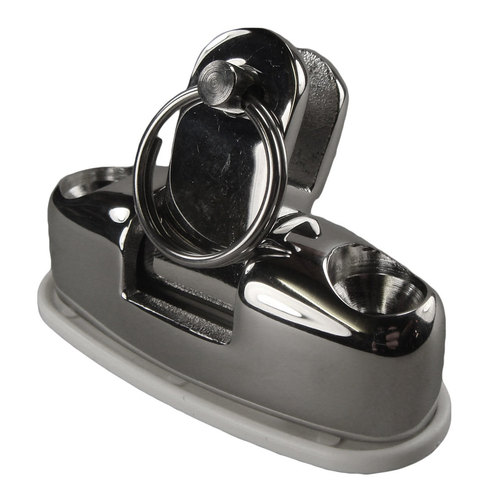

Canopy Hinge Mount - Quick Clip

Part #: HF626A
Availability: In Stock
£16.99

Details

Canopy Hinge Mount

These stainless steel canopy (hood) hinge mounts help compensate for different angles of decks and coamings when installed and are made from cast stainless steel with a polished finish. This canopy hinge accepts the canopy bar end caps and end plugs which can either be fixed with the screw fixing or quick release clip system.

These stainless steel solid metal hood fittings provide a very sturdy connection for hood bars. Hood bars can be under a certain amount of strain with the weight of the hood and any possible build up of water when it rains.

This boat canopy fitting can be installed using the two counter sunk fixing holes and provides hinge support from horizontal surface fitting to vertical surface fitting.

Canopy Hinge Mount Specifications

  HF626 HF626A
Fixing System Screw Fit Quick Realase Clip Fit
Height 50mm
Base Length 71mm
Base Width 27mm
Fixing Hole Centres 52mm
Connecting Bar Slot Width 6mm
Please Note

The screw fixing system and quick realease clip systems are not interchangeable.
