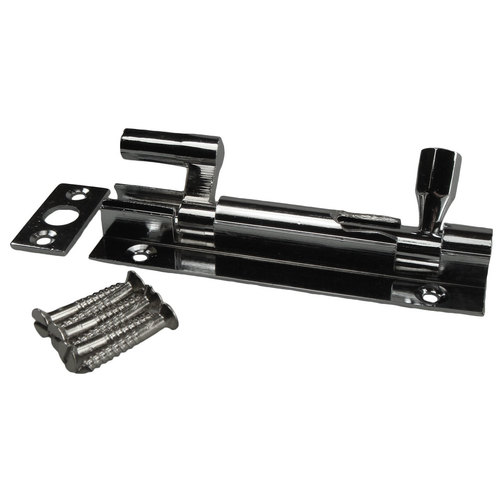

Brass barrel bolt with cranked locating spigot, hexagonal finger toggle, stay and fixing screws for locker or door fastening.
Brass barrel bolt with cranked locating spigot, hexagonal finger toggle, stay and fixing screws for locker or door fastening.
The cranked barrel bolt has four counter sunk fixing holes and the stay has two counter sunk fixing holes. Screws are provided for installation too.
| FF505 | FF505A | |
| Finish | Chrome-plated Brass | Polished Brass |
| Length | 74mm | 74mm |
| Width | 25mm | 25mm |
| Depth (Open/Locked) | 10mm/22mm | 10mm/22mm |
| Fixing Hole Centres | 58mm x 18mm | 58mm x 18mm |
| Stay Length | 25mm | 25mm |
| Stay Width | 13mm | 13mm |
