Cupboard Spring Lock

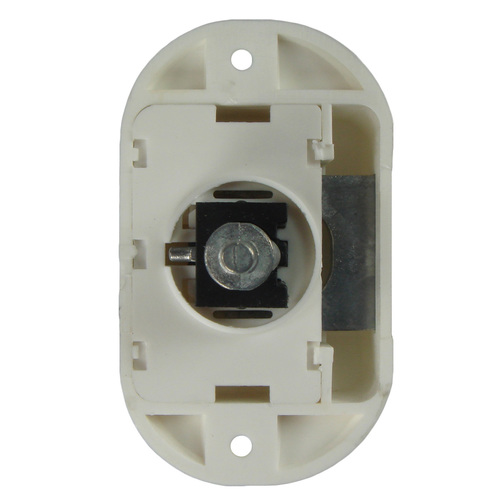

A nylon cupboard spring lock for holding cupboard doors closed that can be pressed and depressed to activate the lock mechanism.

Add to your basket...

Cupboard Spring Lock (FF380)

Price:
£4.50
Quantity:

Cupboard Spring Lock Information

A nylon cupboard spring lock for holding cupboard doors closed that can be pressed and depressed to activate the lock mechanism.

This boat cupboard door lock is usually mounted on the reverse of the door with the cupboard door knob threaded switch going through the door on the the external side.When the push button is depressed the lock is activated to hold the cupboard in place. When the push button is pressed to 'pop' out, the lock is disengaged.

With a white nylon casing and metal catch and lock the door lock can be installed using the two fixing holes.

Cupboard Spring Lock Specification

Colour Off White
Height 76mm
Width 46mm
Depth 20mm
Push Button Height (Locked/Unlocked) 18/28mm
Fixing Hole Centres 64mm
Lock Catch Height 22mm
Lock Catch Length 6mm
Lock Catch Depth 4mm
