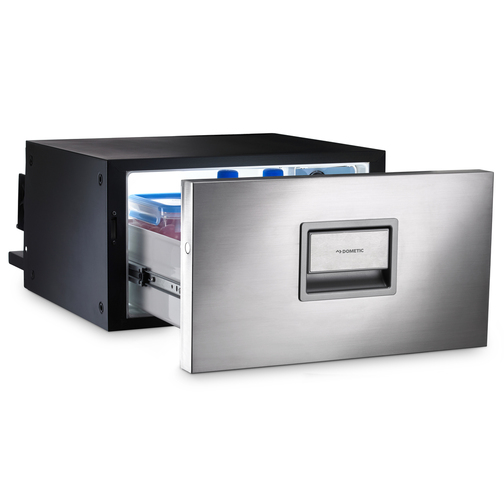

A stainless steel facia compact 12/24-volt fridge drawer with 20-litre capacity, variable thermostat, easy-pull roller bearing drawer runners, and removable compressor to improve installation options.
This product is not currently available, we hope to have it available soon. We can email you when it is back in stock.
The Dometic CD20S is a compact 12/24-volt fridge drawer complete with a stainless facia with 20-litre capacity, variable thermostat, easy-pull roller bearing drawer runners, and removable compressor to improve installation options.
This fridge drawer is ideal for boats with less available space for a standard built-in fridge and can be a great alternative for keeping the essentials cold. With a robust and attractive stainless steel front facia, and an easy, one-pull-to-open, locking catch handle it is effortless to open and close. The robust roller-bearing fridge runners allow even a full fridge to glide open and close effortlessly.
This compact boat fridge has a detachable compressor unit on the back which means you can remove the compressor and have this situated in a different location to the fridge drawer, within the distance of the coolant transfer pipe which is approximately 1.5m long.
| Colour | Stainless Steel |
| Facia Material | Stainless Steel |
| Fridge Capacity | 20 Litre |
| Voltage | 12/24 volt |
| Energy Efficeincy Class | N |
| Height | 250mm |
| Width | 440mm |
| Depth (including removable compressor) | 564mm |
| Refrigerant Transfer Pipe Length | 1.5m |
| Amperage | 3A (12v) / 1.5A (24v) |
| Power Consumption | 36W |
| Voltage drop Cut-off Voltage in Low Mode | 10.4v (12v) / 22.8v (24v) |
| Voltage increase Cut-in Voltage in Low Mode | 11.7v (12v) / 24.2v (24v) |
| Cooling Temperature Range | -2°C to 12°C |
| Refrigerant | R134a |
| Refrigerant Quantity | 35g |
| Weight | 16.8Kg |
