Galvanised Rowlocks & Plates - 7/16"
  • Galvanised Rowlocks & Plates - 7/16"
  • Galvanised Rowlocks & Plates - 3/8"
  • Galvanised Rowlocks & Plates - 1/2"

Galvanised Rowlocks & Plates

A pair of galvanised rowlocks and base plates for steadying oars on rowing boats and dinghies which allow the transfer of thrust from rowing to propulsion forward on the water.

Add to your basket...

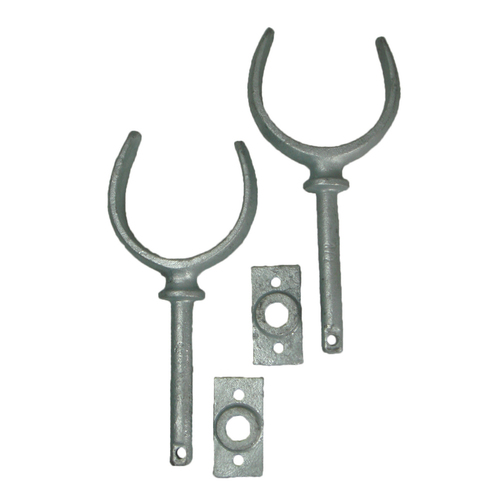

Galvanised Rowlocks & Plates - 3/8" x 2 1/2" (BF205A)

Price:
£11.99
Quantity:

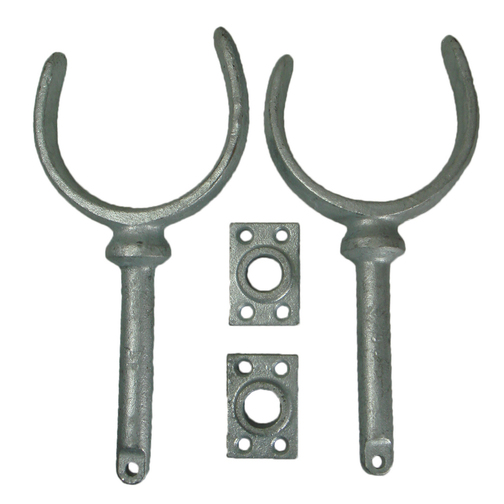

Galvanised Rowlocks & Plates - 1/2" x 2 7/8" (BF207A)

Price:
£15.99
Quantity:

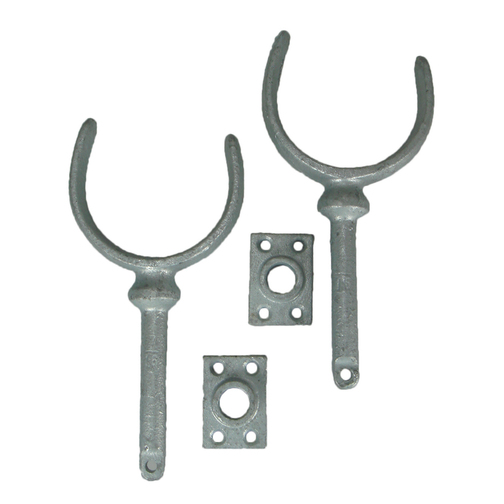

Galvanised Rowlocks & Plates - 7/16" x 2 1/2" (BF206A)

This product is currently not available for sale, it will be available again shortly.

Galvanised Rowlocks & Plates Information

A pair of galvanised rowlocks and base plates for oars on rowing boats and dinghies which allow the transfer of thrust from rowing to propulsion forward on the water.

These boat rowlocks feature a 'U' clasp which steadies the oar in place and prevents the oar from unintentionally 'popping' out of the rowlock, a long shaft with locking pin hole at the bottom and fixing plates for attaching to the boat gunwales.

Galvanised Rowlocks & Plates Specifications

  BF205A BF206A BF207A
Shaft Diameter 3/8" (9.5mm) 7/16" (11mm) 1/2" (13mm)
Rowlock Clasp Diameter 2 1/2" (60mm) 2 1/2" (60mm) 2 7/8" (73mm)
Rowlock Gap 46mm 54mm 63mm
Overall Length 164mm 164mm 175mm
Shaft Length 78mm 74mm 82mm
Shaft Pin Hole Diameter 4mm 4mm 4mm
Base Length 48mm 42mm 42mm
Base Width 24mm 29mm 29mm
Base Hole Diameter 11mm 12mm 13mm
Fixing Screw Centres 30mm 15 x 30mm 15 x 31mm
