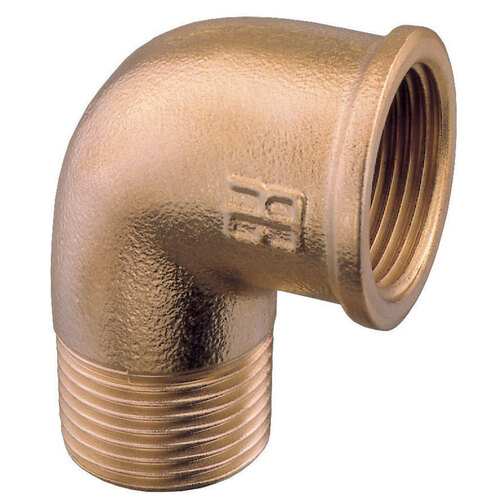

Guidi brass 90-degree elbow sockets featuring a female internal thread on one end and a male external thread on the other to connect to BSP male thread components in pipework.
This product is not currently available, we hope to have it available soon.
This product has been discontinued.
Guidi brass 90-degree elbow sockets featuring a female internal thread on one end and a male external thread on the other to connect to BSP male thread components in pipework.
| Our Part No. | PF2610A | PF2610B | PF2610C | PF2610D | PF2610F | PF2610G | PF2610H | PF2610J | PF2610K | PF2610E |
| Price | £2.47 | £3.22 | £3.00 | £4.35 | £11.04 | £15.92 | £19.25 | £29.84 | £52.69 | £6.53 |
| Brand | Guidi | Guidi | Guidi | Guidi | Guidi | Guidi | Guidi | Guidi | Guidi | Guidi |
| Manufacturers Part No. | 0092-100001 | 0092-100002 | 0092-100003 | 0092-100004 | 0090-100006 | 0090-100007 | 0090-100008 | 0090-100009 | 0090-100010 | 0092-100005 |
| Material | Brass | Brass | Brass | Brass | Brass | Brass | Brass | Brass | Brass | Brass |
| Male Thread Size | 1/8" BSP | 1/4" BSP | 3/8" BSP | 1/2" BSP | 1" BSP | 1 1/4" BSP | 1 1/2" BSP | 2" BSP | 2 1/2" BSP | 3/4" BSP |
| Female Thread Size | 1/8" BSP | 1/4" BSP | 3/8" BSP | 1/2" BSP | 1" BSP | 1 1/4" BSP | 1 1/2" BSP | 2" BSP | 2 1/2" BSP | 3/4" BSP |
| Thread | BSPT | BSPT | BSPT | BSPT | BSPT | BSPT | BSPT | BSPT | BSPT | BSPT |

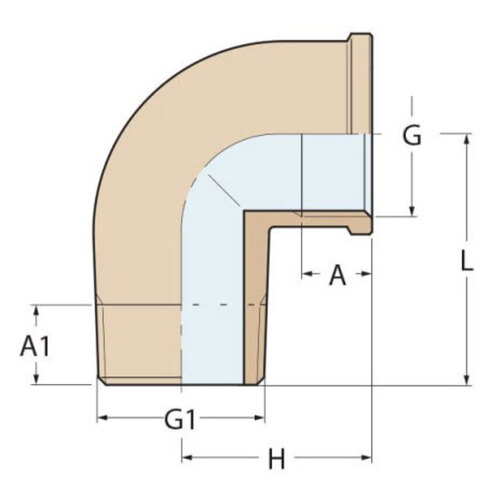

| Thread Length | 8mm | 11mm | 11mm | 13mm | 18mm | 22mm | 22mm | 23mm | 26mm | 15mm |
| Height | 20mm | 22mm | 19mm | 25mm | 38mm | 43mm | 46mm | 56mm | 65mm | 32mm |
| Length | 23mm | 28mm | 27mm | 34mm | 48mm | 51mm | 55mm | 66mm | 78mm | 40mm |
