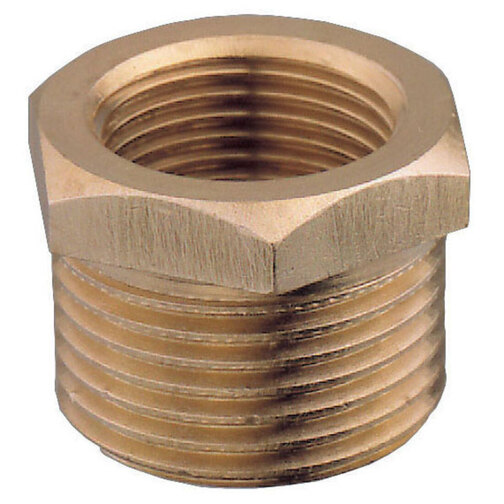

Guidi brass hex head bushing with male thread exterior and female thread interior for reducing or increasing pipework fitting sizes
This product is not currently available, we hope to have it available soon.
This product has been discontinued.
Guidi brass hex head bushing with male thread exterior and female thread interior for reducing or increasing pipework fitting sizes

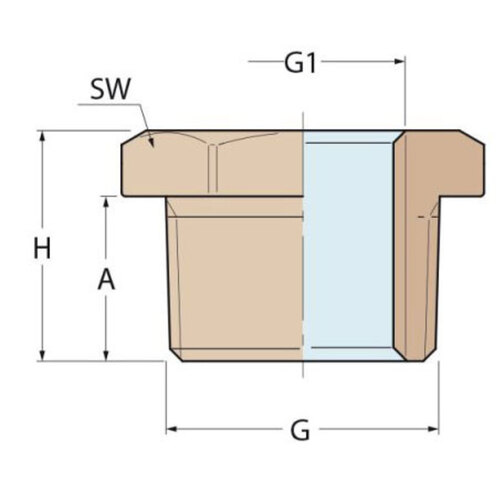

| Our Part No. | PF703A | PF703B | PF703C | PF703D | PF703E | PF703F | PF703H | PF703J | PF703K | PF703L | PF703M | PF703N | PF703P | PF703Q | PF703R | PF703S | PF703T | PF703U | PF703V | PF703W | PF703X | PF703Y | PF703Z |
| Price | £1.53 | £1.82 | £1.71 | £2.73 | £2.50 | £2.12 | £4.25 | £3.99 | £3.49 | £3.00 | £6.52 | £5.66 | £5.12 | £4.29 | £7.22 | £13.20 | £9.70 | £8.47 | £7.22 | £8.53 | £13.55 | £13.39 | £13.14 |
| Brand | Guidi | Guidi | Guidi | Guidi | Guidi | Guidi | Guidi | Guidi | Guidi | Guidi | Guidi | Guidi | Guidi | Guidi | Guidi | Guidi | Guidi | Guidi | Guidi | Guidi | Guidi | Guidi | Guidi |
| Manufacturers Part No. | 0241-100201P | 0241-100203 | 0241-100202 | 0241-100207 | 0241-100206 | 0241-100205 | 0241-100241 | 0241-100210 | 0241-100209 | 0241-100208 | 0241-100251 | 0241-100213 | 0241-100212 | 0241-100211 | 0241-100214 | 0241-100272 | M-1 1/4" x F-1/2" | 0241-100215 | 0241-100214 | M-1 1/2" x F-1/4" | 0241-100242 | 0241-100240 | 0241-100219 |
| Material | Brass | Brass | Brass | Brass | Brass | Brass | Brass | Brass | Brass | Brass | Brass | Brass | Brass | Brass | Brass | Brass | Brass | Brass | Brass | Brass | Brass | Brass | Brass |
| Male Thread Size | 1/4" BSP | 3/8" BSP | 3/8" BSP | 1/2" BSP | 1/2" BSP | 1/2" BSP | 3/4" BSP | 3/4" BSP | 3/4" BSP | 3/4" BSP | 1" BSP | 1" BSP | 1" BSP | 1" BSP | 1 1/4" BSP | 1 1/4" BSP | 1 1/4" BSP | 1 1/4" BSP | 1 1/4" BSP | 1 1/2" BSP | 1 1/2" BSP | 1 1/2" BSP | 1 1/2" BSP |
| Female Thread Size | 1/8" BSP | 1/8" BSP | 1/4" BSP | 1/8" BSP | 1/4" BSP | 3/8" BSP | 1/8" BSP | 1/4" BSP | 3/8" BSP | 1/2" BSP | 1/4" BSP | 3/8" BSP | 1/2" BSP | 3/4" BSP | 1/4" BSP | 3/8" BSP | 1/2" BSP | 3/4" BSP | 1" BSP | 1 1/4" BSP | 3/8" BSP | 1/2" BSP | 3/4" BSP |
| Thread | BSPT | BSPT | BSPT | BSPT | BSPT | BSPT | BSPT | BSPT | BSPT | BSPT | BSPT | BSPT | BSPT | BSPT | BSPT | BSPT | BSPT | BSPT | BSPT | BSPT | BSPT | BSPT | BSPT |
| Thread Length | 11mm | 11mm | 11mm | 15mm | 15mm | 15mm | 16mm | 16mm | 16mm | 16mm | 19mm | 19mm | 19mm | 19mm | 21mm | 21mm | 21mm | 21mm | 21mm | 21mm | 21mm | 21mm | 21mm |
| Height | 16mm | 17.5mm | 17.5mm | 21mm | 21mm | 21mm | 23mm | 23mm | 23mm | 23mm | 26mm | 26mm | 26mm | 26mm | 29.5mm | 29.5mm | 29.5mm | 29.5mm | 29.5mm | 30.5mm | 30.5mm | 30.5mm | 30.5mm |
