Jabsco 3270-200 Engine Water Pump

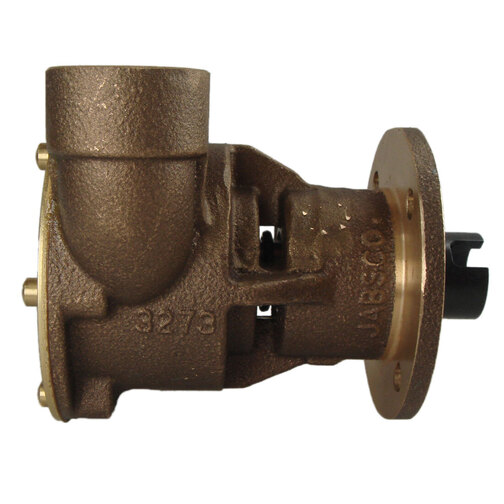

Jabsco 3270-200 bronze self-priming engine water pump with 3/4" BSP ports stainless steel shaft and replaceable rubber impeller for the circulation of water for engine cooling.

Jabsco Logo

Add to your basket...

Jabsco 3270-200 Engine Water Pump (J140)

By: Jabsco, Part No.: 3270-200
Price:
£474.00
SRP:
£474.07
Quantity:

Jabsco 3270-200 Engine Water Pump Information

Jabsco 3270-200 bronze self-priming engine water pump with 3/4" BSP ports stainless steel shaft and replaceable rubber impeller for the circulation of water for engine cooling.

This boat engine water circulating pump features a removable faceplate, held on with six fixing screws, to ease servicing the pump with either the Jabsco 3270 Water Pump Service Kit or the Jabsco 3270 Water Pump Impeller Kit. This engine water pump features a stainless steel shaft and robust shaft bearings.

What Jabsco 3720-200 Engine Water Pump Spares are available?

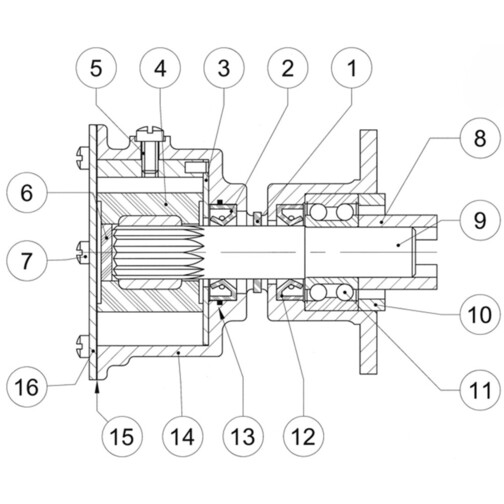

Most Jabsco 3270-200 engine water cooling pump spares are available from Sheridan Marine and the number list below can be used in conjunction with the part identifier image above:

  1. Jabsco 3286-0000 Water Pump Slinger
  2. Jabsco SP2701-21B Water Pump Seal
  3. Jabsco 7884 Water Pump Cam Plate & Wearplate
  4. Jabsco 1210-0001-P Impeller Kit
  5. Jabsco 91003-0010 Water Pump Screw
  6. Jabsco 4345-0000 Water Pump Spline Plug
  7. Jabsco 91002-0020 Water Pump Faceplate Screws
  8. Jabsco 3278-0000 Water Pump Shaft Coupling
  9. Jabsco 3277 Water Pump Shaft
  10. Jabsco 3276-0000 Water Pump Back Adapter Ring
  11. Jabsco 92600-0070 Water Pump Bearing
  12. Jabsco SP2701-21B Water Pump Seal
  13. Jabsco SP2000-21B Water Pump O Ring
  14. Jabsco 3298-0000 Water Pump Faceplate Gasket
  15. Jabsco 11830-0000 Water Pump Faceplate

Jabsco 3270-200 Engine Water Pump Specification

Port Size 3/4" BSP Threaded
Body Material Bronze
Shaft Material Stainless Steel

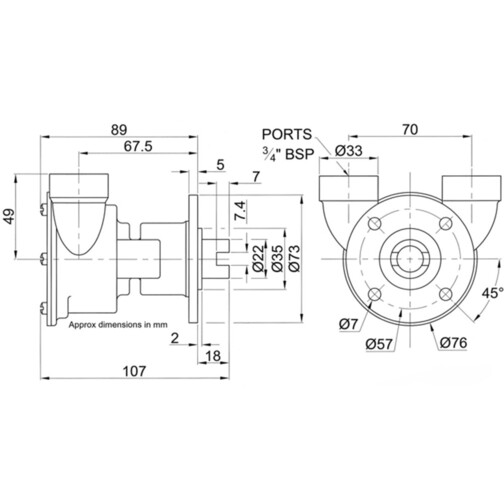

Measurements See images above
