Seat Support with Swivel, Lock & Slide

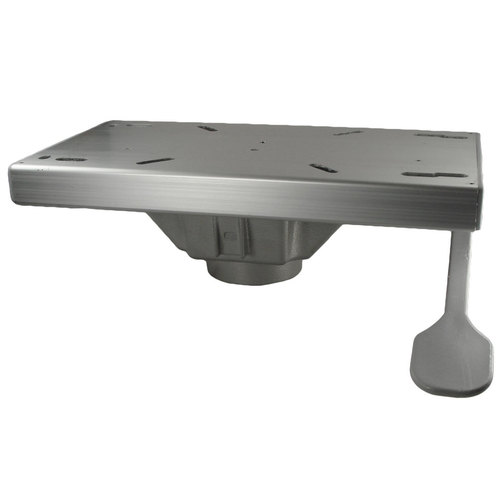

An aluminium seat support with swivel, lock & slide features that can be installed to the underside of a seat which in turn can be installed on to a seat pedestal providing movement flexibility.

Add to your basket...

Seat Support with Swivel, Lock & Slide (UP540A)

Price:
£68.99
Quantity:

Seat Support with Swivel, Lock & Slide Information

An aluminium seat support with swivel, lock & slide features that can be installed to the underside of a seat which in turn can be installed on to a seat pedestal providing movement flexibility. When fitted to the underside of the helm seat or navigator seat it allows you to securely attach the seat to a pedestal mount so that you can sit at the helm and steer in comfort.

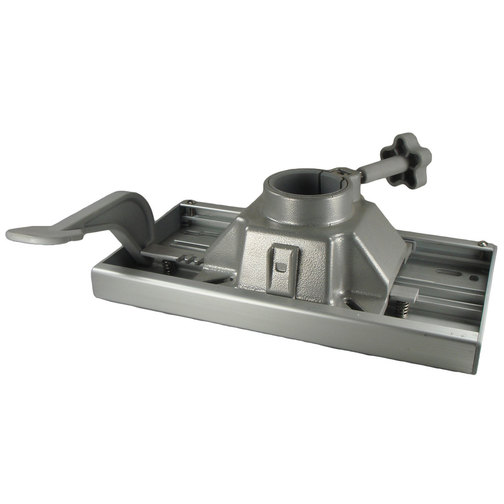

With the ability to swivel and lock into positions of choice, by releasing the screw thread lock toggle, you can rotate the seat 360 degrees (depending on the installation space around the seat) and lock the seat securely in position. This allows you to position the seat once for piloting the boat and again when moored for socialising with the crew.

The boat seat support also has a slide function which allows you to move the seat horizontally too. By releasing the slide catch and spring the locating teeth release and the seat can be slid across and relocated to different locating teeth.

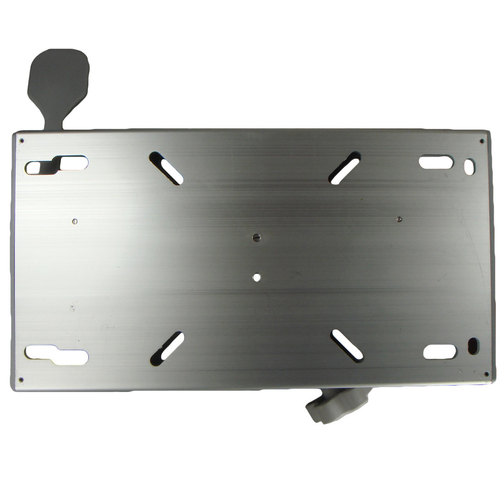

The boat seat support has an array of fixing holes and slots to accommodate various seat fixing configurations.

Seat Support Fixing Hole Layout

  • Four 30mm by 8mm fixing slots with hole centres ranging from 110mm to 140mm
  • Two 25mm by 10mm fixing slots at one end
  • Two interconnecting 25mm by 10mm fixing slots at one end
  • Two 12mm by 7mm fixing holes at one end

Seat Support with Swivel, Lock & Slide Specification

Length 340mm
Width (Plate only) 300mm (182mm)
Height 103mm
Insert Diameter 60mm
Suitably used with Seat Pedestal legs with Diameter 60mm
Slide Distance 125mm
Rotation 360 degrees
Fixing Hole Centres (Min-Max) As above
