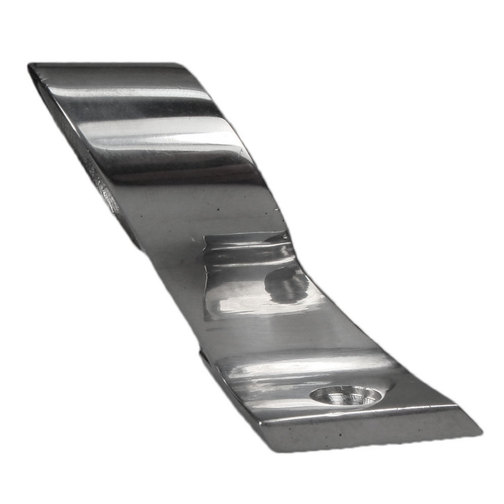

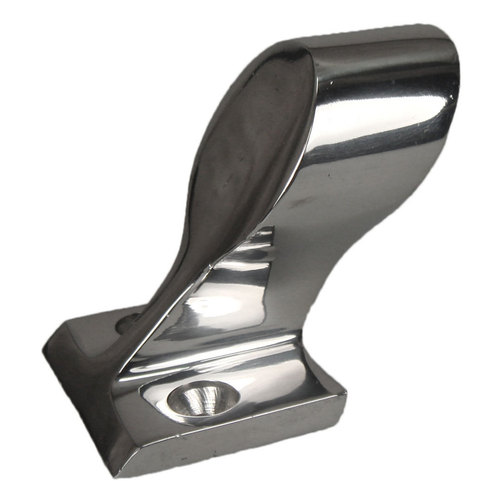

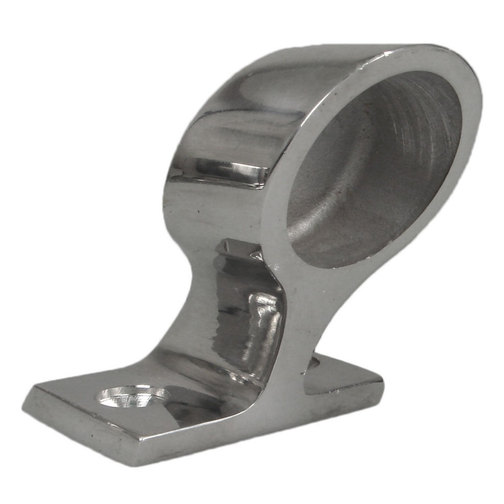

Polished stainless steel angled closed handrail brackets features a 30 degree angled design and angled square base with two counter sunk fixing screw holes.
This polished stainless steel angled closed handrail brackets features a 30 degree angled design and angled square base with two counter sunk fixing screw holes.
| DF760A | DF761A | |
| Internal Diameter | 22mm (7/8") | 25mm (1") |
| Height | 50mm | 57mm |
| Length | 55mm | |
| Base Length | 30mm | |
| Base Width | 40mm | |
| Angle | 30 Degrees | |
| Fixing Hole Centres | 25mm | |
| Rating | AISI 316 Stainless Steel | |
