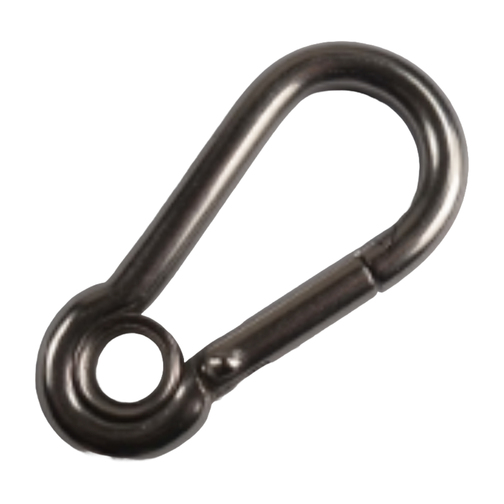

A carbine hook, or carabiner, with a 'snap-shut' locking arm and captive eye constructed from marine grade 316 stainless steel.
This product is currently out of stock, we hope to have it available soon. We can email you when it is back in stock.
A carbine hook, or carabiner, with a 'snap-shut' locking arm and captive eye constructed from marine grade 316 stainless steel.
HT049A | HT049B | HT049C | HT049D | HT049E | |
Length (L) | 50mm | 60mm | 70mm | 80mm | 100mm |
Diameter (D) | 5mm | 6mm | 7mm | 8mm | 10mm |
Aperture (A1) | 9mm | 13mm | 13mm | 13mm | 16mm |
Diameter (A) | 6mm | 8mm | 8mm | 8mm | 10mm |
Jaw Gap (E) | 8mm | 9mm | 10mm | 11mm | 14mm |
Safe Working Load (kg) | 45.4 | 63.5 | 90.7 | 113.4 | 181.4 |
Average Break Load (kg) | 181.4 | 254.0 | 362.9 | 453.6 | 725.7 |
Material | Stainless Steel AISI 316 |
Safe Working Load and Break Load information is provided by the supplier.
