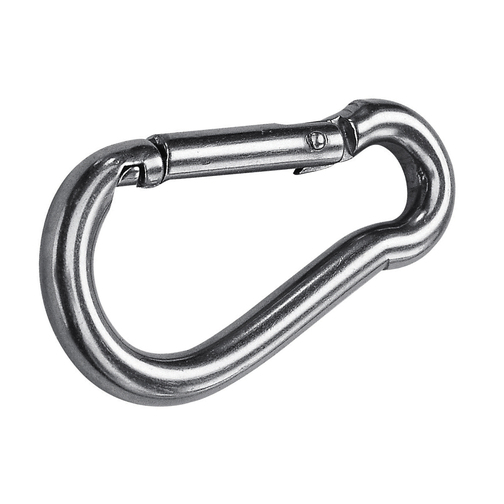

A carbine hook, or carabiner, with a 'snap-shut' locking arm constructed from marine grade 316 stainless steel.

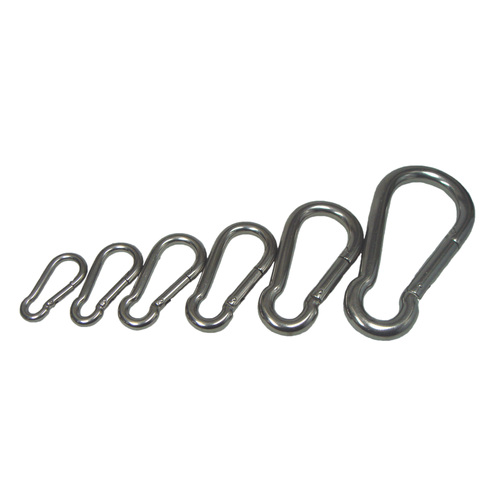

A carbine hook with 'snap-shut' locking arm. These boat carbine hooks are constructed from marine grade 316 stainless steel.
HT049A | HT049B | HT049C | HT049D | HT049E | |
Length (L) | 50mm | 60mm | 70mm | 80mm | 100mm |
Diameter (D) | 5mm | 6mm | 7mm | 8mm | 10mm |
Aperture (A1) | 9mm | 13mm | 13mm | 13mm | 16mm |
Diameter (A) | 6mm | 8mm | 8mm | 8mm | 10mm |
Jaw Gap (E) | 8mm | 9mm | 10mm | 11mm | 14mm |
Safe Working Load (kg) | 45.4 | 63.5 | 90.7 | 113.4 | 181.4 |
Average Break Load (kg) | 181.4 | 254.0 | 362.9 | 453.6 | 725.7 |
Material | Stainless Steel AISI 316 |
Safe Working Load and Break Load information is provided by the supplier.
