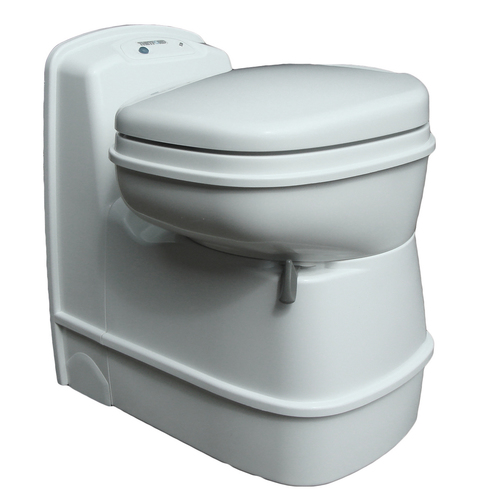

The Thetford C200CS Electric Flush Cassette Toilet is an electric flush cassette toilet with 180 degree rotatable bowl, built-in removable waste cassette tank with easy pour emptying spout and waste level indicator light.
With a rotating toilet bowl (rotates through 180 degrees) this toilet provides flexibility in use as the toilet can be used in one position and stored in another for space saving. It can be connected directly to the existing water system to provide an electric flush (complete with flush button and non return valve) and can be installed freestanding to any internal wall with space behind for the rear entry, cassette style, waste holding tank. The tank level indicator light also provides a warning as to when the tank requires emptying, all providing a means of having a more 'home-style' toilet on board without the need for a permanent waste holding tank.
A cassette style toilet utilises a removable waste tank (known as a cassette) to hold waste in a manageable way whilst allowing for emptying more conveniently at sanitation disposal points without the need of a built-in holding tank, which would usually require a pump out facility.
The waste holding cassette simply slides into the rear of the toilet and engages with the toilet bowl to collect the waste hygienically. The cassette can be unlocked and removed from the toilet and features a fold out spout to improve emptying, with a vent button to allow air flow while pouring, which prevents a vacuum forming, and in turn helps to stop any splashing back.
Once emptied, the cassette can be pushed back into the toilet for reuse.
Each C200CS electric toilet comes with fitting templates and instructions along with locking plate & screws and an under toilet warm air transit duct that is designed to sit underneath the toilet should your installation happen to come into contact with your existing heater ducting (for common 60mm diameter ducting).

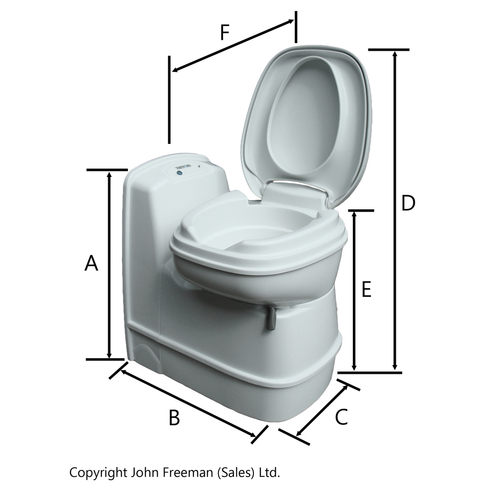

| TT180 | Diagram Reference | |
| Width | 353mm | C |
| Depth | 500mm | B |
| Height (with seat up) | 538mm (822mm) | A (D) |
| Seat Height | 495mm | (E) |
| Seat Length | 430mm | (F) |
| Intake | 19mm (3/4") | |
| Discharge | 25mm (1") | |
| Voltage | 12v |
