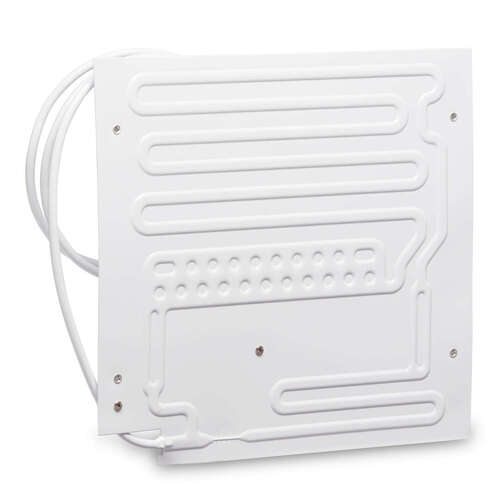

The Dometic ColdMachine VD-05 Fridge Evaporator plate is a 'Flat' shaped evaporator unit for cooling in either an associated Dometic fridge or for custom-designed fridge spaces up to 170 Litre capacity.
The Dometic ColdMachine VD-05 Fridge Evaporator plate is a 'Flat' shaped evaporator unit for cooling in either an associated Dometic fridge or for custom-designed fridge spaces up to 170 Litre capacity.
This 'Flat' shaped 12-volt or 24-volt fridge evaporator unit can be installed horizontally or vertically and can be connected to a suitable compressor and comes complete with self-sealing valve couplings for easy installation onto Dometic fridge compressors. When installing into 240-volt systems either the Dometic EPS 100 Refrigerator Mains Adaptor or the Dometic Coolpower MPS-35 Refrigerator Mains Adaptor can be used in connection with BD35F compressors.
Fitted with a fully variable external thermostat, LED indicator light for temperature monitoring, and flexible refrigerant connecting pipe (approximately 2m long) allowing for flexibility with installation options.
| Weight | 1.5Kg |
| Shape | 'Flat' Shape |
| Width | 375mm |
| Height | 350mm |
| Depth | 25mm |
| Refrigerant Connecting Pipe Length | Approximately 2m |
| Pipe Connectors | Self-sealing Valves |
| Electrical Supply Cord Length | Approximately 3m |
| Refrigeration Capacity | up to 170 litres |
| Power Consumption | 45W |
| Refrigerant Type | R134a |
| Refrigerant Amount | 30g |
| Suitable Dometic Cooling Unit Series | 80 |
