A plastic facia compact 12/24-volt fridge drawer with 20-litre capacity, variable thermostat, easy-pull roller bearing drawer runners, and removable compressor to improve installation options.

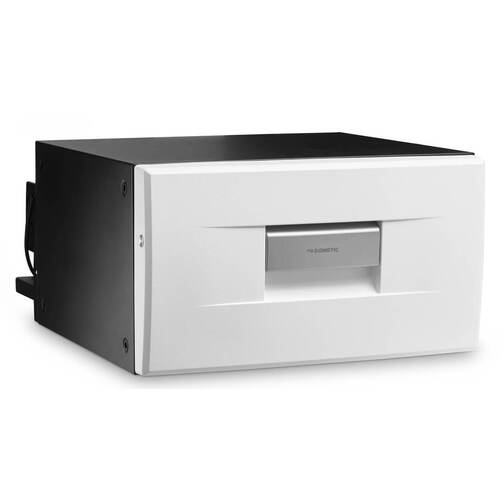

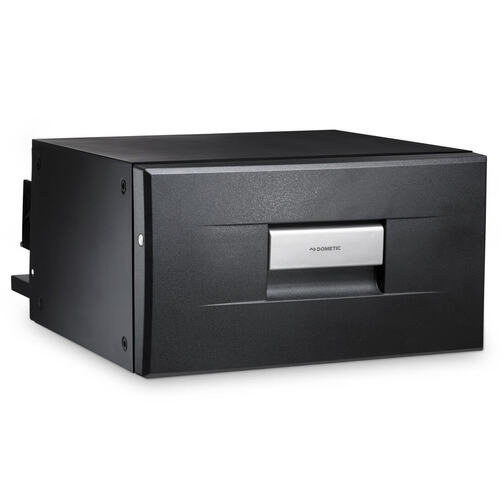

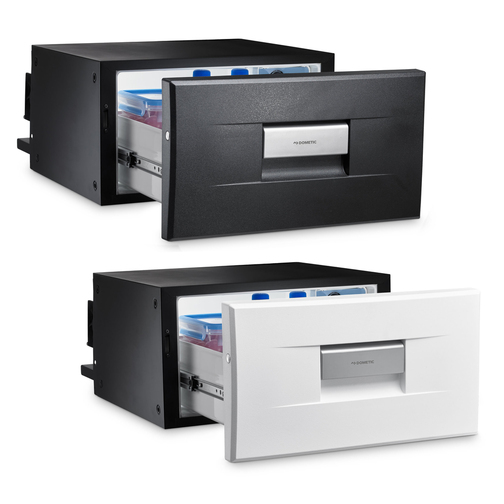

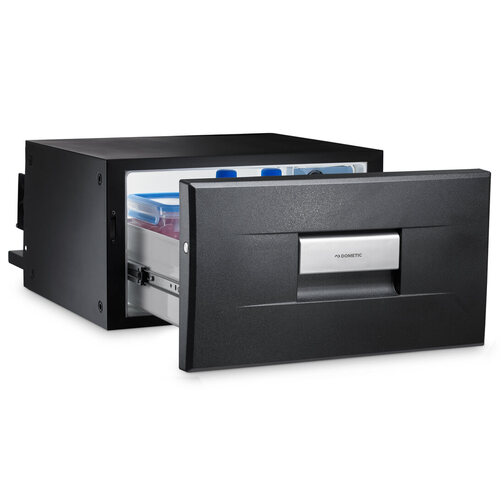

The Dometic CD20 fridge drawer is a compact 12/24-volt fridge drawer complete with a plastic facia with 20-litre capacity, variable thermostat, easy-pull roller bearing drawer runners, and removable compressor to improve installation options.
This fridge drawer is ideal for boats with less available space for a standard built-in fridge and can be a great alternative for keeping the essentials cold. With a robust and attractive stainless steel front facia, and an easy, one-pull-to-open, locking catch handle it is effortless to open and close. The robust roller-bearing fridge runners allow even a full fridge to glide open and close effortlessly.
This compact boat fridge has a detachable compressor unit on the back which means you can remove the compressor and have this situated in a different location to the fridge drawer, within the distance of the coolant transfer pipe which is approximately 1.5m long.
| RF050A | RF050B | |
| Colour | Black | White |
| Facia Material | Plastic | |
| Fridge Capacity | 20 Litre | |
| Voltage | 12/24 volt | |
| Energy Efficeincy Class | N | |

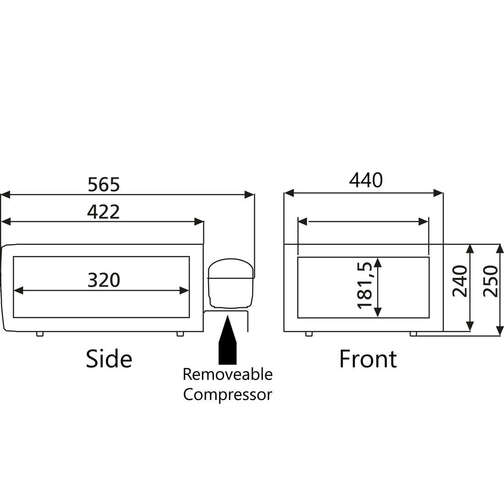

| Height | 250mm | |
| Width | 440mm | |
| Depth (including removable compressor) | 564mm | |
| Refrigerant Transfer Pipe Length | 1.5m | |
| Amperage | 3A (12v) / 1.5A (24v) | |
| Power Consumption | 36W | |
| Voltage drop Cut-off Voltage in Low Mode | 10.4v (12v) / 22.8v (24v) | |
| Voltage increase Cut-in Voltage in Low Mode | 11.7v (12v) / 24.2v (24v) | |
| Voltage increase Cut-in Voltage in High Mode | 12.6v (12v) / 26.2v (24v) | |
| Cooling Temperature Range | -2°C to 12°C | |
| Refrigerant | R134a | |
| Refrigerant Quantity | 35g | |
| Weight | 16.1Kg | |
