A robust single diaphragm pump with flexible mounting options, suitable for emptying toilet waste holding tanks.

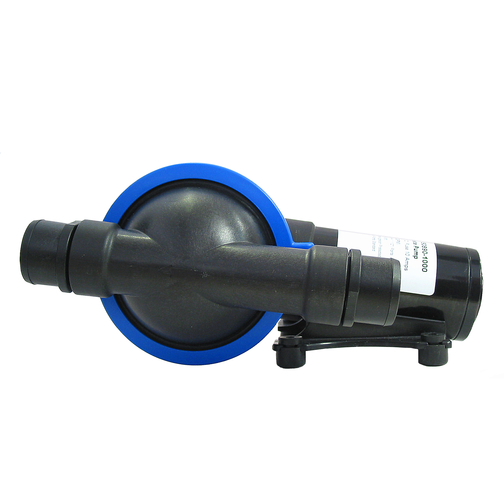

The Jabsco self-priming diaphragm waste pump is suitable for emptying toilet waste holding tanks. The robust single diaphragm design is not only quiet but it also allows for extended dry running and the pump can pass solids, eliminating potential blockages.
This 12 volt self-priming diaphragm pump can produce an output of up to 19 litres per minute (5 gallons/minute) and it can self-prime up to 3m (10ft) vertical lift.
The compact and simple pump design incorporates multi-positional ports for easy mounting and flexible installation options. The Jabsco self-priming diaphragm pump complies with USCG 183.410 and ISO 8846 Marine (Ignition Protected).
The diaphragm pump comes with 38mm (1 1/2") hose connections and four rubberised foot mounts.
| Length | 278mm |
| Height | 132mm |
| Width | 161mm |
| Applications | Grey Waste Water |
| Head | 3m (10ft) |
| Output | Up to 1140 litres per hour (up to 19 litres per minute) / 300 gallons per hour (5 gallons per minute) |
| Inlet | 33mm (1 1/2") |
| Outlet | 33mm (1 1/2") |
| Voltage | 12v |
| Maximum Amps | 8 amps |
