Mains IP44 3 Pin Flush Mount Plug
Mains 3 pin IP44 flush mount plastic plug with spring loaded splash proof cover for mains power inlet on board.
Add to your basket...
Mains IP44 3 Pin Flush Mount Plug Information

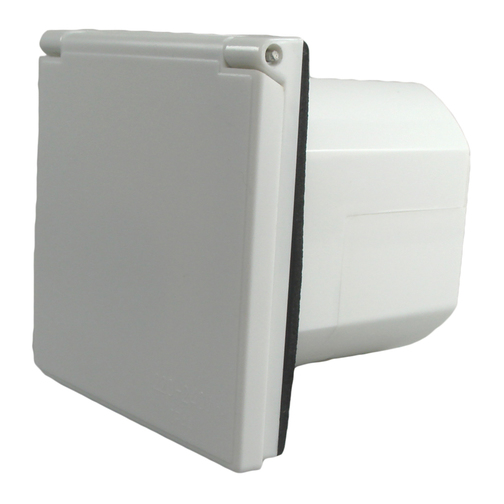

Mains 3 pin IP44 flush mount plug plastic with spring loaded splash proof cover for mains power inlet on board. The front cover plate clips tight into place once the socket has been removed to prevent spiders and weather entering.

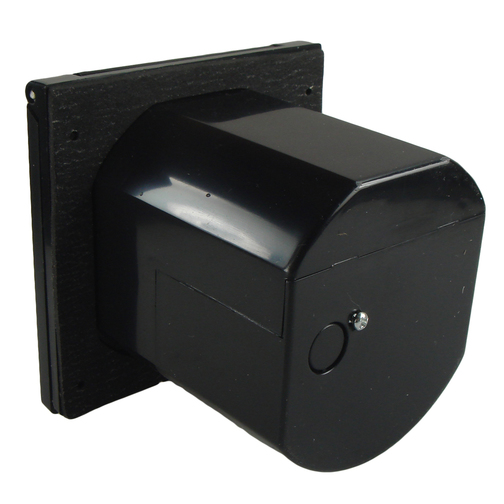

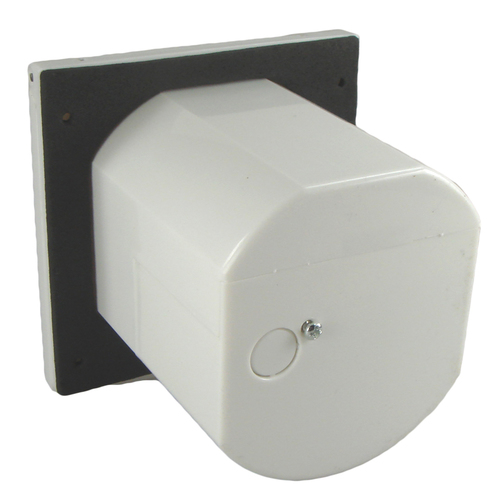

Each shore power flush mount plug has four counter sunk fixing holes and a foam base plate for installation. When a Mains 3 Pin Socket is placed into the plug a securing tab prevents the socket from falling out. A lever on the inside of the plug must be pressed to release the socket.
Mains IP44 3 Pin Flush Mount Plug Specification
| EL219 | EL219A | EL219B | |

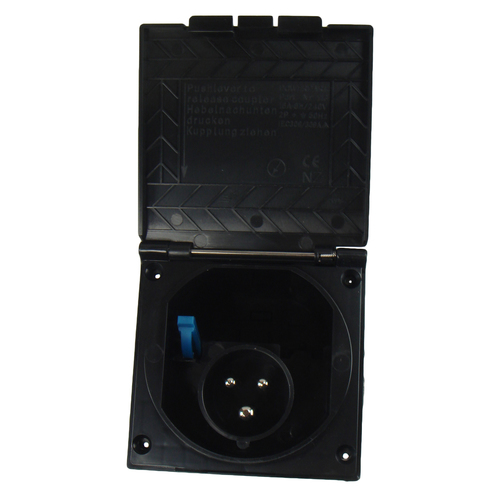

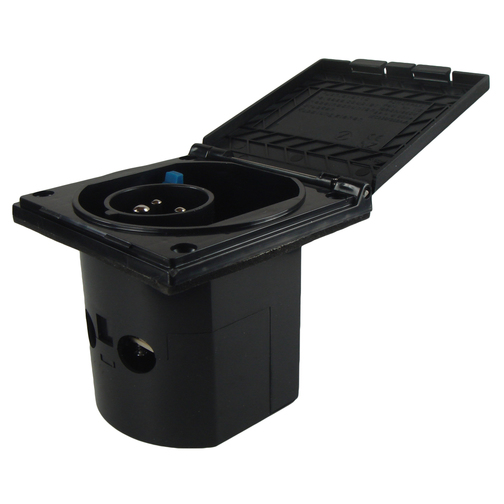

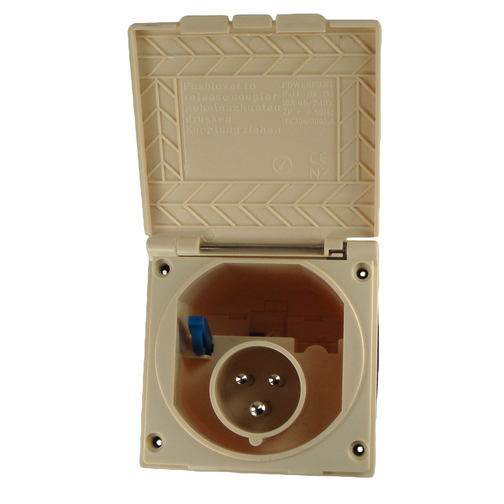

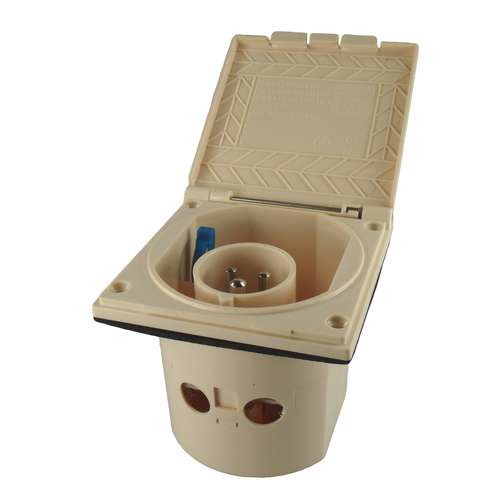

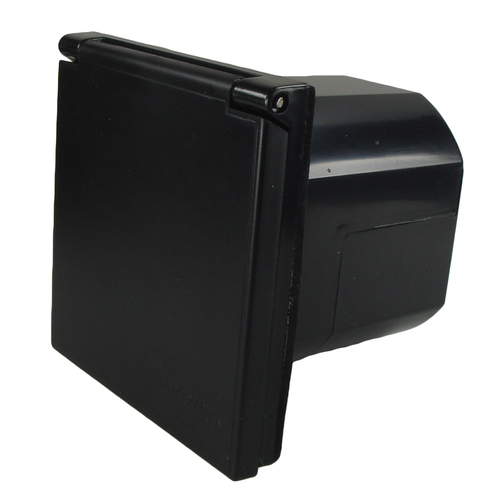

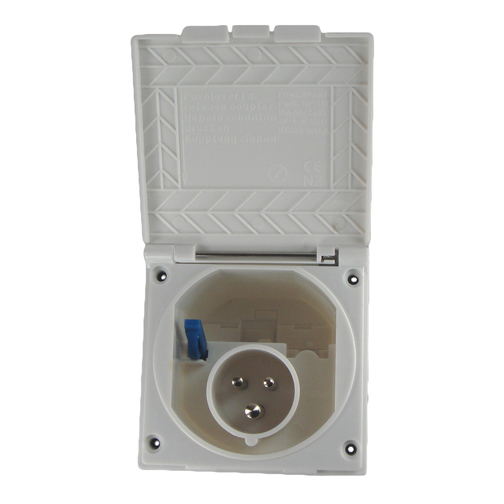

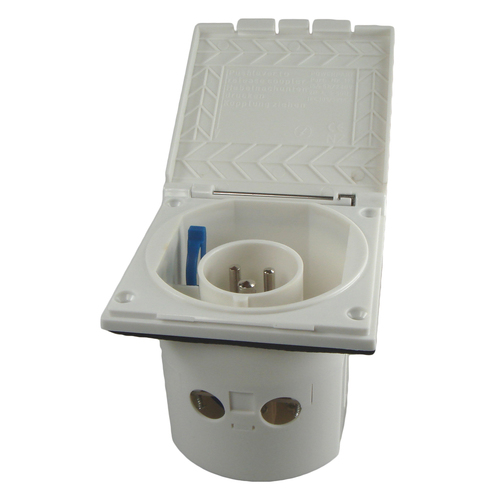

| Colour | White | Black | Beige |
| Voltage | 220-240v | ||
| Ampage | 16amp | ||
| Rating | IP44 | ||
| Lid Height | 110mm | ||
| Lid Width | 105mm | ||
| Lid Depth | 14mm | ||
| Overall Depth | 98mm | ||
| Recessed Depth | 84mm | ||
| Recessed Height | 88mm | ||
| Recessed Width | 78mm | ||
