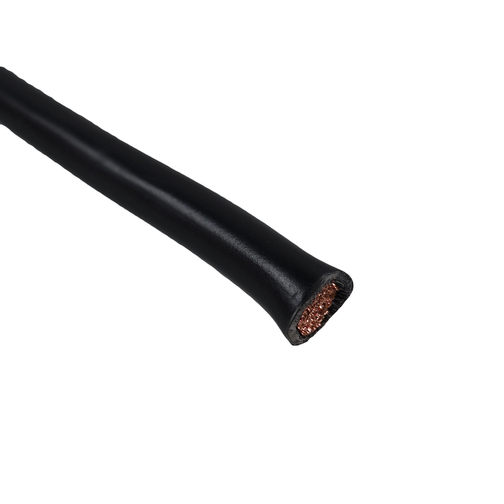

Single Core 120/0.30 63 Amp Copper Cable with Round PVC Sheath
  • Single Core 120/0.30 63 Amp Copper Cable with Round PVC Sheath
  • Single Core 120/0.30 63 Amp Copper Cable with Round Black PVC Sheath
  • Single Core 120/0.30 63 Amp Copper Cable with Round Red PVC Sheath

Single Core 120/0.30 63 Amp Copper Cable with Round PVC Sheath

Single-core copper cable with hard grade PVC sheath insulation comprising of one internal wire for use on boat electrical systems.

Add to your basket...

Single Core 120/0.30 63 Amp Copper Cable with Round Black PVC Sheath (EL737A)

Price:
£3.50
Quantity:

Single Core 120/0.30 63 Amp Copper Cable with Round Red PVC Sheath (EL737B)

Price:
£3.50
Quantity:

Single Core 120/0.30 63 Amp Copper Cable with Round PVC Sheath Information

Single-core copper cable with hard grade PVC sheath insulation comprising of one internal wire for use on boat electrical systems.

Single Core 120/0.30 63 Amp Copper Cable with Round PVC Sheath Specification

Quantity per metre
Cross Section 8.5mm²
Conductor 120/0.30mm
Voltage 12/24V DC (Maximum 60V)
Amps (Norminal Current Rating) 63A
Resistance at 20°C 0.00220 ohms
Cable Conductor Copper
External Diameter 5.5mm
Maximum Load
  • @ 12V 756 Watts
  • @ 24V 1512 Watts
Cable Shape Round
Sheath Colour Black or Red
Sheath Material Hard Grade PVC
Cable Cores 1 Core
Cable Style Thin Wall Cable
Temperature Range -40°C to +105°C
Approvals ISO6722-1:2011 (Class B) & BS EN60228:2005

Please note: This item is cut from a coil and once cut is non-returnable.
