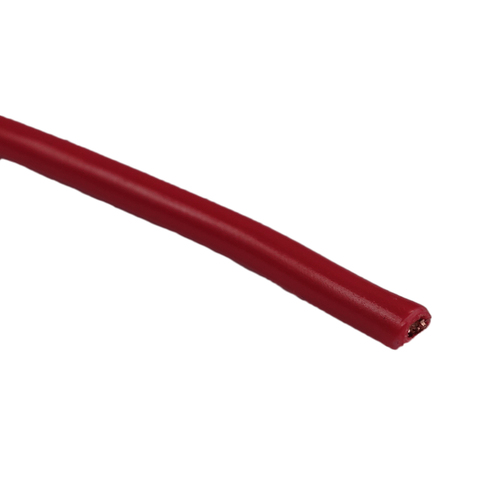

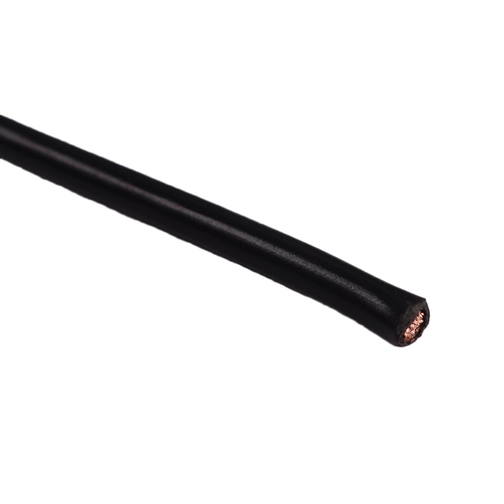

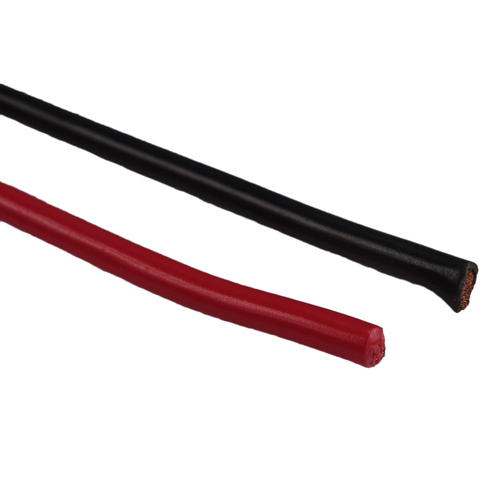

Single-core copper cable with hard grade PVC sheath insulation comprising of one internal wire for use on boat electrical systems.
Single-core copper cable with hard grade PVC sheath insulation comprising of one internal wire for use on boat electrical systems.
| Quantity | per metre |
| Cross Section | 3.0mm² |
| Conductor | 44/0.30mm |
| Voltage | 12/24V DC (Maximum 60V) |
| Amps (Norminal Current Rating) | 33A |
| Resistance at 20°C | 0.00615 ohms |
| Cable Conductor | Copper |
| External Diameter | 3.2mm |
| Maximum Load |
|
| Cable Shape | Round |
| Sheath Colour | Black or Red |
| Sheath Material | Hard Grade PVC |
| Cable Cores | 1 Core |
| Cable Style | Thin Wall Cable |
| Temperature Range | -40°C to +105°C |
| Approvals | ISO6722-1:2011 (Class B) & BS EN60228:2005 |
This item is cut from a coil and once cut is non-returnable.
