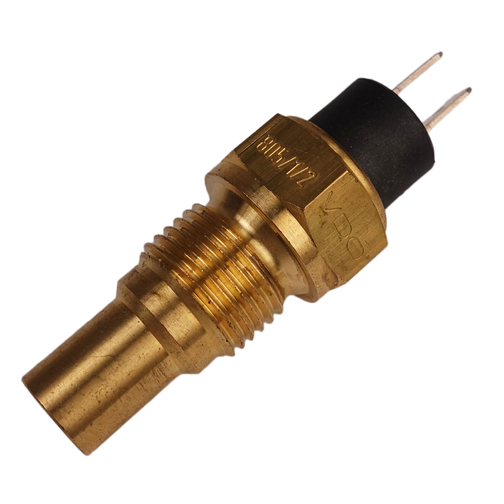

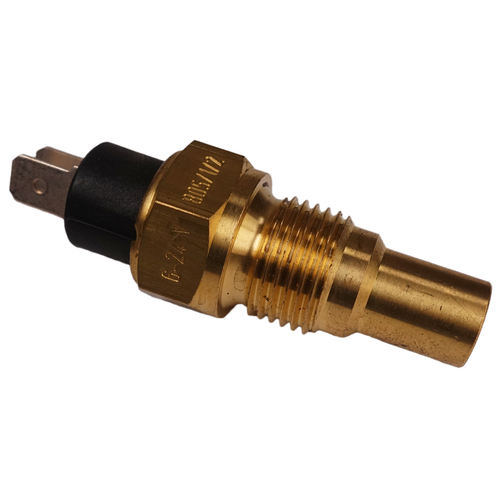

A VDO 805/1/2 engine water temperature sender with a 5/8-18 UNF-2A thread, the sender works at 287.4 ohms of resistance at 40°C and 22.7 ohms at 120°C.
A VDO 805/1/2 engine water temperature sender with a 5/8-18 UNF-2A thread, the sender works at 287.4 ohms of resistance at 40°C and 22.7 ohms at 120°C.
| Thread | 5/8-18" - UNF-2A |
| Signal | 287.4 (40°C) to 22.7 Ohms (120°C) |
| Voltage | 6-24V |
| Terminal | 6.3mm Spade Terminal |
| Hex Width | 19mm |
| Length | 29mm |
| Length of Threaded Sender | 12mm |
| Sender Diameter | 11mm |
