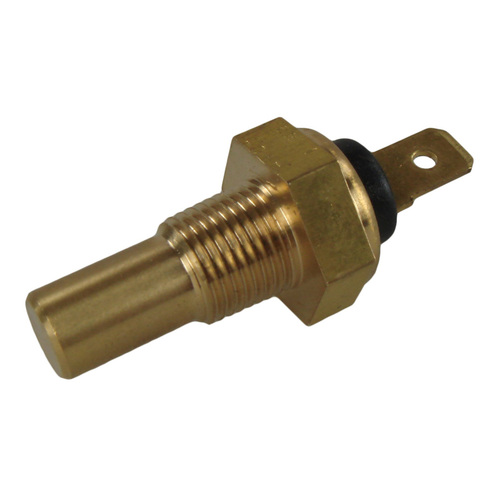

WaterMota Smiths Small Temperature Sender

An engine water temperature sender with a 1/8" - 27NPT thread, the sender works at 230 ohms of resistance to 33 ohms and is compatible with the Freeman Smiths Electrical Water Temperature Gauge with Chrome Bezel.

Smiths Instruments Logo

Add to your basket...

WaterMota Smiths Small Temperature Sender (EC023A)

Price:
£19.95
Quantity:

WaterMota Smiths Small Temperature Sender Information

The WaterMota Smiths Small Temperature Sender is an engine water temperature sender with a 1/8" - 27NPT thread, the sender works at 230 ohms of resistance to 33 ohms and is compatible with the Freeman Smiths Electrical Water Temperature Gauge with Chrome Bezel.

Will This Temperature Sender Fit a WaterMota Engine?

This water temperature sender with its 1/8" - 27NPT thread will fit a WaterMota engine if your temperature sender is fitted into the head of the engine in the small hole as Ford would have used on a car. However, WaterMota did not normally fit the sender here and it is usually blanked off.

This temperature sender can be fitted to a WaterMota engine in the usual positions by using the WaterMota Small Temperature Sender Adapter, this will allow you to mount it either into the WaterMota Thermostat Housing if you do not have a thermostat or into the WaterMota Water Temperature Sender Core Plug at the back of the engine in the block for a more accurate reading.

Water Temperature Gauge Senders - What Resistance?

This water temperature sensor reads 230 ohms of resistance to 23 ohms. There are many different resistances used for temperature senders so it is important to match the gauge with the correct sender. The resistance used for this sender is based on the European standard, however, there are multiple interpretations of the European standard, therefore we recommend purchasing the specific Freeman Smiths Electrical Water Temperature Gauge with Chrome Bezel for this sender.

WaterMota Smiths Small Temperature Sender Specification

Thread 1/8" - 27NPT
Signal 230 to 33 Ohms
Compatibility Smiths Gauges
Terminal 6.3mm Spade Terminal
Hex Width 16mm
Length 43mm
Length of Threaded Sender 22mm
Sender Diameter 8mm
