WaterMota Smiths Large Temperature Sender
  • WaterMota Smiths Large Temperature Sender
  • WaterMota Temperature Sender Core Plug with Large Temperature Sender

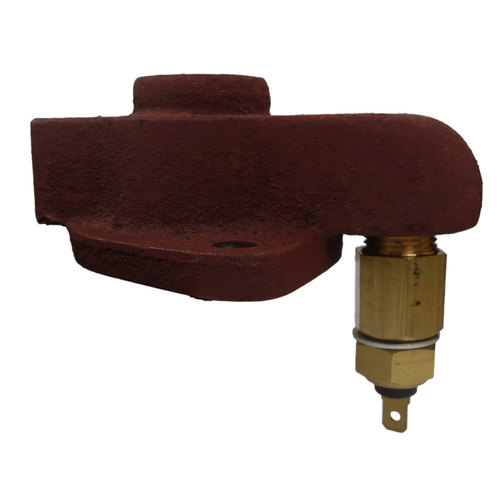

  • WaterMota Smiths Large Temperature Sender Fitted into the Thermostat Housing

WaterMota Smiths Large Temperature Sender

An engine water temperature sender with a 5/8 X 18UNF thread, the sender works at 240 ohms of resistance to 33 ohms and is compatible with the Freeman Smiths Electrical Water Temperature Gauge with Chrome Bezel.

Smiths Instruments Logo

Add to your basket...

WaterMota Smiths Large Temperature Sender (EC023B)

Price:
£21.80
Quantity:

WaterMota Smiths Large Temperature Sender Information

The WaterMota Smiths Small Temperature Sender is an engine water temperature sender with a 5/8 X 18UNF thread, the sender works at 240 ohms of resistance to 33 ohms and is compatible with the Freeman Smiths Electrical Water Temperature Gauge with Chrome Bezel.

Will This Temperature Sender Fit a WaterMota Engine?

This water temperature sender with its 5/8 X 18UNF thread will fit a WaterMota engine if your temperature sender is fitted in the WaterMota Thermostat Housing if you do not have a thermostat or into the WaterMota Water Temperature Sender Core Plug at the rear of the engine in the block which provides a more accurate reading.

Water Temperature Gauge Senders - What Resistance?

This water temperature sensor reads 240 ohms of resistance to 23 ohms. There are many different resistances used for temperature senders so it is important to match the gauge with the correct sender. The resistance used for this sender is based on the European standard, however, there are multiple interpretations of the European standard, therefore we recommend purchasing the specific Freeman Smiths Electrical Water Temperature Gauge with Chrome Bezel for this sender.

WaterMota Smiths Large Temperature Sender Specification

Thread 5/8 X 18UNF
Signal 240 to 33 Ohms
Compatibility Smiths Gauges
Terminal 6.3mm Spade Terminal
Hex Width 18mm
Length 51mm
Length of Threaded Sender 27mm
Sender Diameter 9mm
