The WaterMota exhaust bend carries the exhaust gas from the manifold to the exhaust pipe. It is where the cold water is injected into the system.

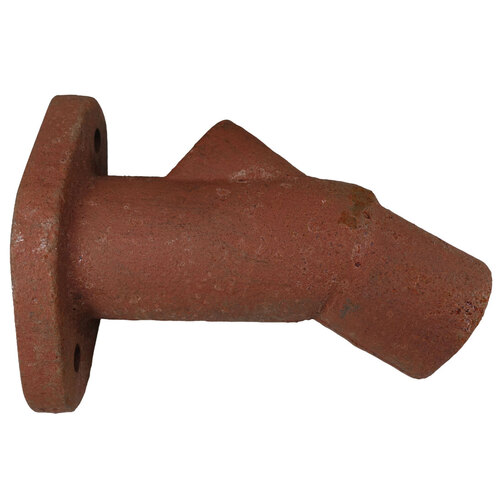

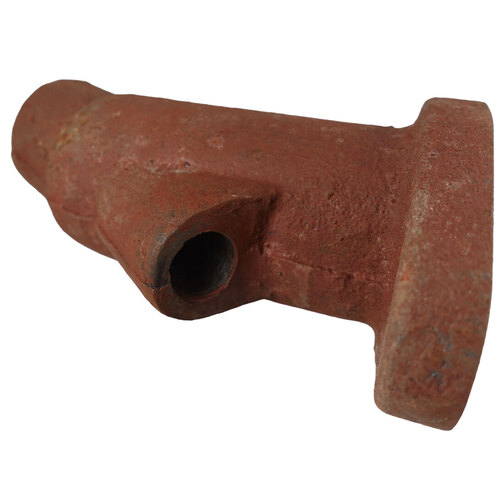

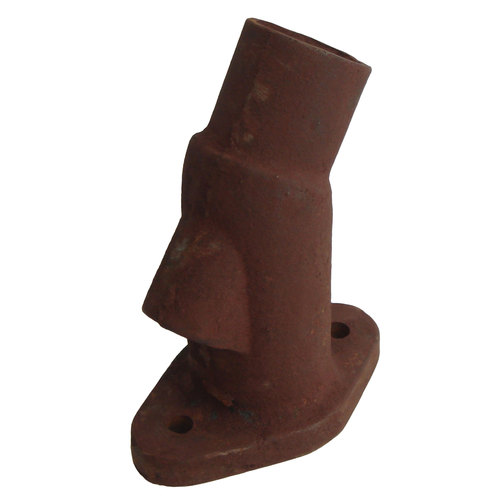

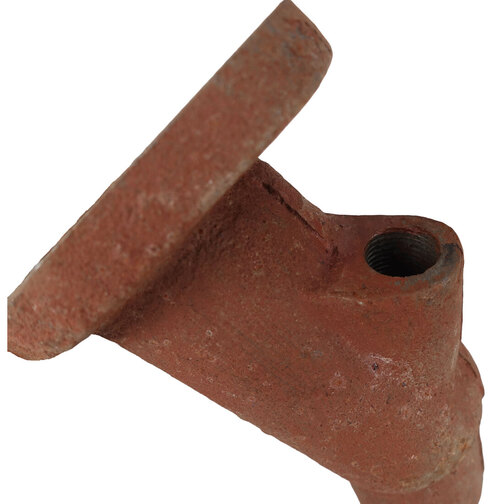

This WaterMota exhaust bend attaches to the Watermota manifold, onto which a 1 1/2" (38mm) Marine Flexible Exhaust Hose can be fitted. The WaterMota Turned Down Short has a 1 1/2" external diameter outlet port that allows a 1 1/2" internal bore hose to be fitted, which is often found on Freeman 24's and 27's.
The WaterMota Exhaust Bend Gasket. WaterMota Brass Nut, WaterMota Spring Washer, and the WaterMota Stud can usually be used to install the exhaust bend, and the WaterMota Pipe Connector is usually used for the engine cooling water connection.
| Outlet Diameter | 1 1/2" |
| Length | 136mm |
| Bolt Hole Centres | 73mm |
