Johnson 09-1026B-1 Impeller & Gasket Kit
A replacement Johnson 09-1026B-1 MC97 water pump impeller and gasket kit.
Add to your basket...
Johnson 09-1026B-1 Impeller & Gasket Kit Information
Our thoughts...
It is advisable to carry a spare water pump impeller as they can go at any time. Luckily it's a relatively easy job to replace, as long as you have a spare!

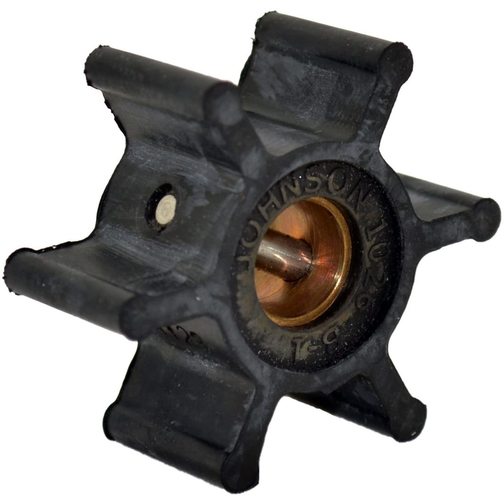

The Johnson 09-1026B-1 impeller and gasket kit includes an MC97 impeller (suitable for pumping cooling water), the impeller features a slotted shaft pin drive and six blades. The impeller kit also includes popular pump face plate gaskets and a sachet of impeller lubricant to aid the replacement of your old engine water pump impeller.
Johnson 09-1026B-1 Impeller Alternatives
The Johnson 09-1026B-1 impeller is an alternative for the Jabsco 673-0001 impeller.
- Jabsco: 673-0001
- Perkins: 24880194
- Volvo: 804696, 875808, 897055, 3593659
- Westerbeke: 21218
Johnson 09-1026B-1 Impeller & Gasket Kit Specification
| Johnson Pump | F4B & F5B |
| Drive Type | Pin Drive |
| Blades | 6 |
| Profile | G |
| Material | Neoprene |
| Diameter | 51mm (2") |
| Width | 22mm (7/8") |
| Shaft Diameter | 12.7mm (1/2) |
Included in the Johnson 09-1026B-1 Impeller & Gasket Kit
- Impeller (1026B)
- Paper Gasket (01-42391)
- Paper Gasket (01-45284)
- Impeller Lubricant
