Johnson 09-1027B-1 Impeller & Gasket Kit
A replacement Johnson 09-1027B-1 MC97 water pump impeller and gasket kit.
Add to your basket...
Johnson 09-1027B-1 Impeller & Gasket Kit Information
Our thoughts...
It is advisable to carry a spare water pump impeller as they can go at any time. Luckily it's a relatively easy job to replace, as long as you have a spare!

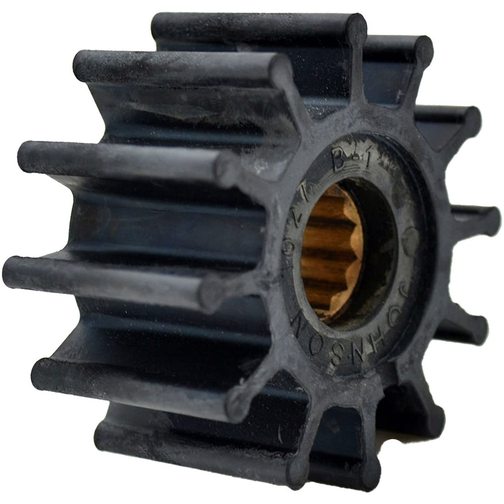

The Johnson 09-1027B-1 impeller and gasket kit include an MC97 impeller (suitable for pumping cooling water), the impeller features a spline drive and twelve blades. The impeller kit also includes popular pump faceplate paper & foam gaskets, rubber o-rings, and a sachet of impeller lubricant to aid the replacement of your old engine water pump impeller.
Johnson 09-1027B-1 Impeller Alternatives
The Johnson 09-1027B-1 impeller is an alternative for the Jabsco 1210-0001 impeller.
- Jabsco: 1210-0001
- Perkins: 0460038
- Vetus: IMP00201
- Volvo: 3855546, 825940, 860203, 875811
- Yanmar: 129470-42530
- Onan: 132-0162
- Johnson Crank Drive
- Volvo I/O Engines
Johnson 09-1027B-1 Impeller & Gasket Kit Specification
| Johnson Pump | F5 |
| Drive Type | Spline Drive |
| Blades | 12 |
| Profile | K |
| Material | Neoprene (MC97 or Neoprene for cooling water) |
| Diameter | 57mm (2 1/4") |
| Width | 31.5mm (1 1/4") |
| Shaft Diameter | 16mm (5/8") |
Included in the Johnson 09-1027B-1 Impeller & Gasket Kit
- Impeller (1027B)
- Paper Gasket (01-46540)
- Foam Gasket (01-42401)
- Foam Gasket
- Foam Gasket
- Rubber O-Ring (05-06-590 / 0.2173.475)
- Rubber O-Ring (05-06-595 / 0.2172.012)
- Impeller Lubricant
