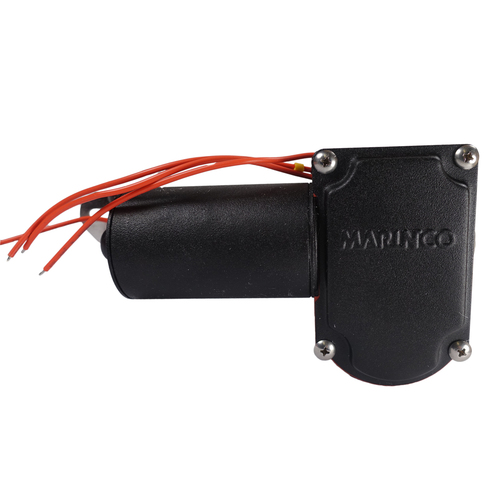

Marinco AFi MRV Heavy Duty Marine Wiper Motors
The Marinco MRV 12 volt wiper motor unit is a compact heavy-duty marine motor with a two-speed motor, adjustable sweep setting, adjustable self-park, and is suitable for up to 22" wiper blades.
Add to your basket...
Marinco AFi MRV Heavy Duty Marine Wiper Motors Information
The Marinco MRV 12 volt wiper motor unit is a compact heavy-duty marine motor with a two-speed motor, adjustable sweep setting, adjustable self-park, and is suitable for up to 24" wiper blades.
The Marinco wiper motor has a tough, corrosion-resistant, black casing and features a stabalising fixing hole on one side. The boat wiper motor has a pre-set sweep of 80° or 110° on the screen - this can be adjusted along with the adjustable self-parking for the wiper arms, meaning you can set the park position to either left or right-sided.
The wiper motor has 5/8" (16mm) brass and stainless steel shaft with a solid brass knurled drive spindle (14mm) and features RF shielded circuitry, stainless steel fasteners, and stainless steel mounting bracket, and the self-park has a 'coast-to-park' feature.
Each of these motors can be paired with wiper arms and blades up to 22" in length.
Marinco AFi MRV Heavy Duty Marine Wiper Motors Specification
| DF1010 | DF1010A | DF1010B | |
| Shaft Length | 1 1/2" | 2 1/2" | 2 1/2" |
| Pre-set Angle of Sweep | 80° | 80° | 110° |
| Maximum Blade Length | 22" | 22" | 22" |
| Voltage | 12v | 12v | 12v |
| Amperage | 5 amp | 5 amp | 5 amp |
| Sweep | 45, 60, 80, or 110° | 45, 60, 80, or 110° | 40, 50, 60, 70, 80, 90, 100, or 110° |
| Shaft Diameter | 5/8" (16mm) | 5/8" (16mm) | 5/8" (16mm) |
| Spindle Diameter | 14mm | 14mm | 14mm |
| Length | 194mm | 194mm | 194mm |
| Height | 102mm | 102mm | 102mm |
| Depth (excluding shaft) | 51mm | 51mm | 51mm |
| Shaft to Fixing Hole Centre | 159mm | 159mm | 159mm |
