Modular 6 Way Blade Fuse Holder
  • Modular 6 Way Blade Fuse Holder

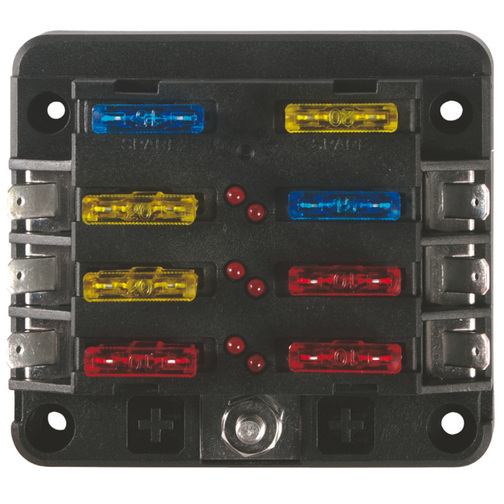

  • Modular 6 Way Blade Fuse Holder Without Lid
  • Modular 6 Way Blade Fuse Holder & Optional Bus Bar

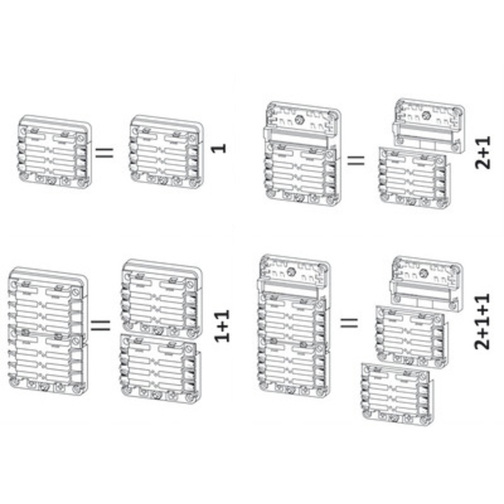

  • Modular 6 Way Blade Fuse Holder & Bus Bar Layouts

Modular 6 Way Blade Fuse Holder With Blown Fuse Indicator

A modular fuse holder for blade fuses complete with blown fuse LED indicators, allowing you to connect two fuse boxes together and/or add an optional negative bus bar.

Add to your basket...

Modular 6 Way Blade Fuse Holder (EL039A)

Price:
£23.59
SRP:
£27.72
You save:
£4.13 (15%)
Quantity:

Modular 6 Way Blade Fuse Holder With Blown Fuse Indicator Information

This Modular 6 Way Blade Fuse Holder With Blown Fuse Indicator accepts 6 standard blade fuses (also known as ATP/ATO/ATC or Automotive Fuses), each fuse location features a small red LED which lights up to indicate when the fuse has blown. There are also fuse two locations for holding spare fuses.

The modular blade fuse box can be linked together to give you more fuse locations if required as long as the total load does not exceed 100A. The fuse box can also be linked to a negative bus bar to make connecting and wiring even easier.

The fuse holder comes complete with mounting screws and multiple labels for both naming the fuse box and naming each fuse with common marine devices.

Modular 6 Way Blade Fuse Holder With Blown Fuse Indicator Specification

Number of Fuses 6
Fuse Type Blade Fuses (ATP/ATO/ATC)
Terminals Spade Connectors
Voltage 12V/24V
Maximum Amps Per Fuse 20A
Maximum Amps Total Load 100A
Height 78mm
Width 68mm
Depth 41mm

Included in the Modular 6 Way Blade Fuse Holder With Blown Fuse Indicator

  • 1 x 6 Way Fuse Holder & Cover
  • 5 x Fuse Box Naming Stickers (1 Blank to Write On)
  • 48 x Fuse Labelling Stickers
  • 4 x Mounting Screws
  • 1 x Module Connecting Screw

Please note: Fuses are not included.
