A 12-volt electric boat toilet with china bowl, built-in waste macerator & discharge pump, dual waste management switch panel and and soft-close toilet seat and lid.

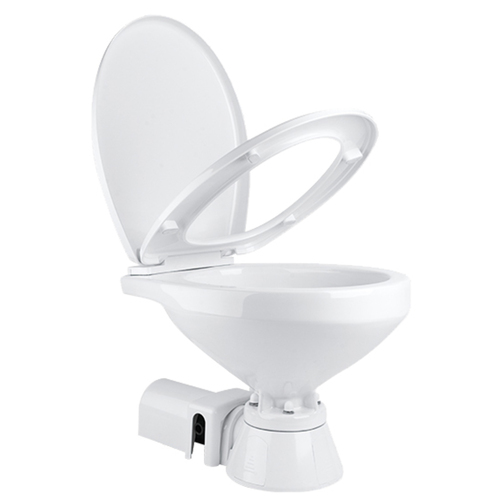

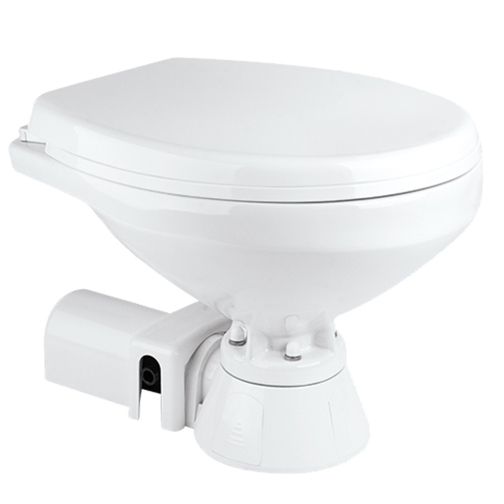

The Seaflo Regular Bowl Electric Toilet is an efficient and quiet electric flushing boat toilet with a built-in all-in-one electric macerator, waste discharge pump, and water flush pump, providing a seamless system with a one-touch button operation that is easy to use.

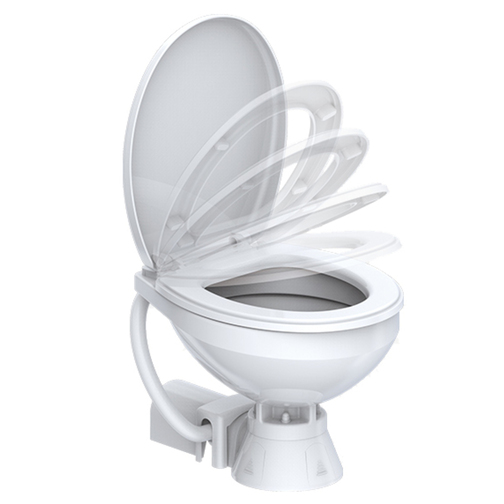

The Seaflo electric flush boat toilet has a regular-sized white vitreous china bowl for space saving, soft-close seat and lid hinged from the china bowl and 3/4" (19mm) water inlet port and 1" (25mm) waste outlet (with a 1" to 1 1/2" waste hose adapter should your pre-existing system have the more standard 1 /2" waste hose). The built-in 12-volt macerator waste management pump will work to break down waste to ease transit to the holding tank on board.
This Seaflo MTE101R marine toilet is constructed with crevice-free contours and smooth mouldings for added hygiene, and all fastenings face front or top for ease of maintenance.
The bulkhead switch panel can be mounted using the four countersunk fixing holes and installed using the pre-stripped wires. The panel offers two switches: a one-touch flush function that operates the flush water and waste macerator in unison, and an additional rocker switch for independent control of the rinse water supply and discharge pump, so that the bowl water level can be raised or lowered by the user independently.
| Toilet Seat | Regular |
| Flush Control | Panel Button |
| Flush System | Seawater Supply (from a through-hull fitting, suitable for fresh/brackish/seawater) |

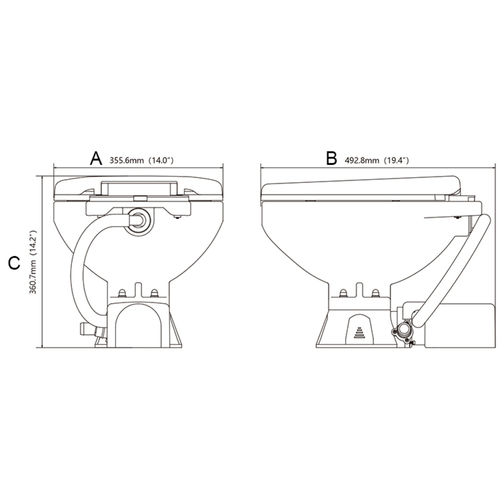

| Width (A) | 355.6mm |
| Depth (B) | 492.8mm |
| Height (C) | 360.7mm |
| Voltage | 12v |
| Amperage | 20A |
| Intake | 19mm (3/4") |
| Discharge | 25mm (1") |
