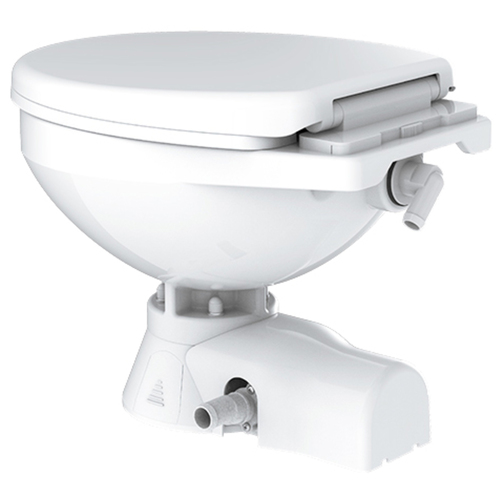

Seaflo Regular Bowl Quiet Flush Electric Toilet

The Seaflo Regular Bowl Quiet Flush Electric Toilet provides an efficient and quiet electric flushing boat toilet with a built-in electric macerator, waste discharge pump and water flush with a one-touch button operation.

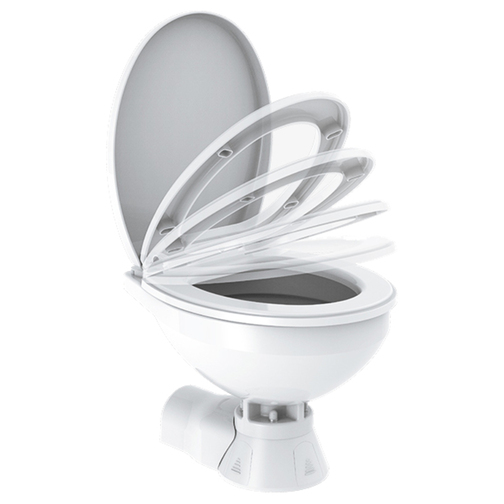

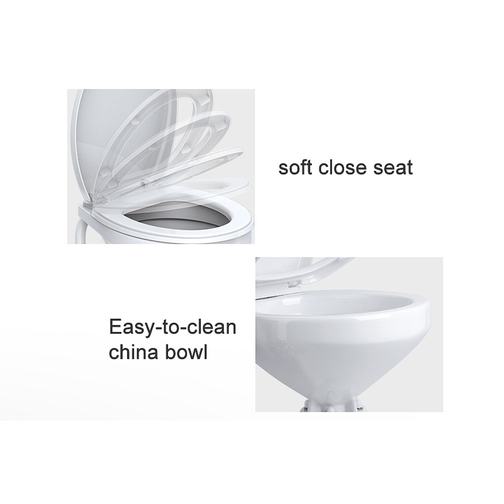

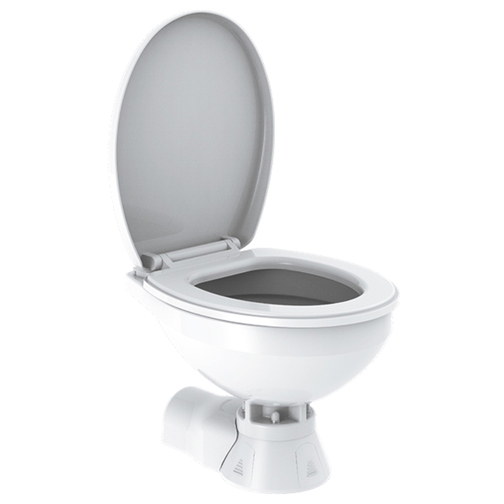

The Seaflo MTE103R and MTE104R electric flush boat toilet has a regular-sized white vitreous china bowl, akin to a household sized toilet, featuring a soft-close seat and lid hinged from the china bowl and 3/4" (19mm) water inlet port and 1" (25mm) waste outlet (with a 1" to 1 1/2" waste hose adapter should your pre-existing system have the more standard 1 /2" waste hose). The built-in 12-volt macerator waste management pump will work to break down waste to ease transit to the holding tank on board.

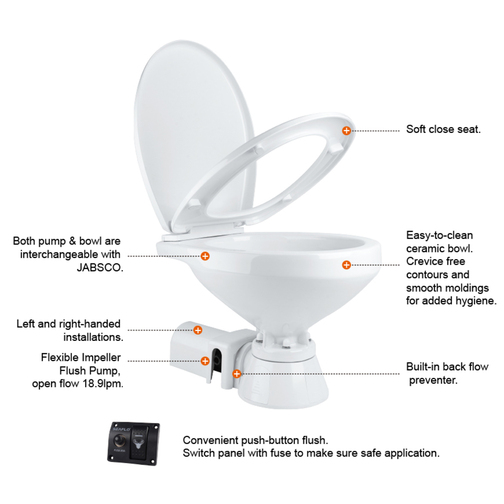

This Seaflo marine toilet is constructed with crevice-free contours and smooth mouldings for added hygiene, and all fastenings face front or top for ease of maintenance.

What are the options for flushwater supply connection on the Seaflo Toilets?

There are two distinctive options for the connection of the flushwater supply for installing the Seaflo marine toilets, they are:

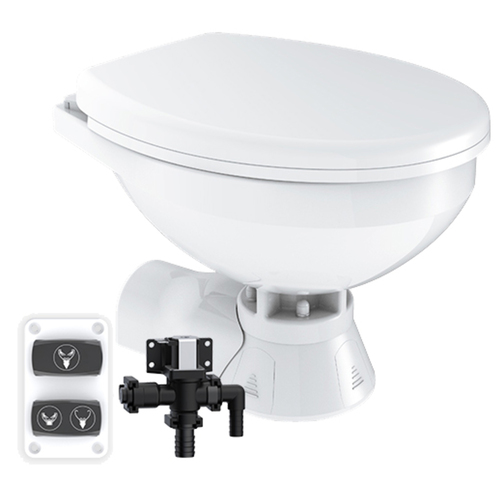

• The Seaflo MTE103R Regular Marine Toilet Freshwater Flush connects to your onboard freshwater supply via a solenoid & non-return valve. This option connects directly to your current 'freshwater' supply system without the need for additional tanks or adaptation to the boat's structure. For example, there is no need to install a through-hull fitting for the water inlet if you do not already have one. With the aid of the supplied solenoid valve and siphon breaker, this marine toilet can be plumbed into a pre-existing pressurised fresh water system on board, utilising either fresh or salt water. When installed, the solenoid valve will provide water from the freshwater system as flush water whilst preventing backflow contamination.

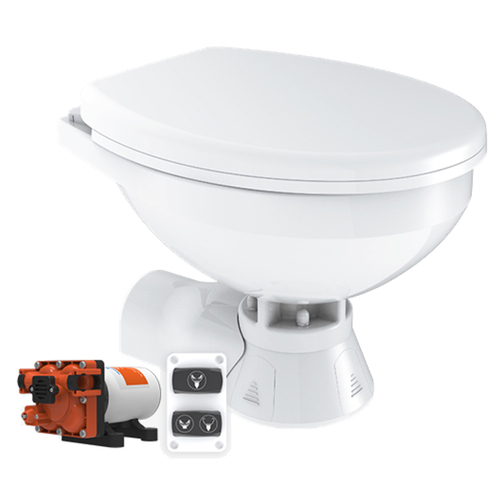

• The Seaflo MTE104R Regular Marine Toilet Seawater Flush connects to a through-hull water inlet fitting and utilises water that the boat is moving through, whether that be fresh river water, brackish water, or seawater. This marine toilet comes complete with a water pump for the application and the benefit is that there is no risk of contamination of the freshwater supply should the solenoid & non-return valve fail for any reason. It also means that you have unlimited flush water access as it will not be draining down your onboard freshwater tank, extending your range before a fill-up.

Each toilet has a bulkhead switch panel that can be mounted using the four countersunk fixing holes and installed using the pre-stripped wires. The panel offers two switches: a one-touch flush function that operates the flush water and waste macerator in unison, and an additional rocker switch for independent control of the rinse water supply and discharge pump, so that the bowl water level can be raised or lowered by the user independently.

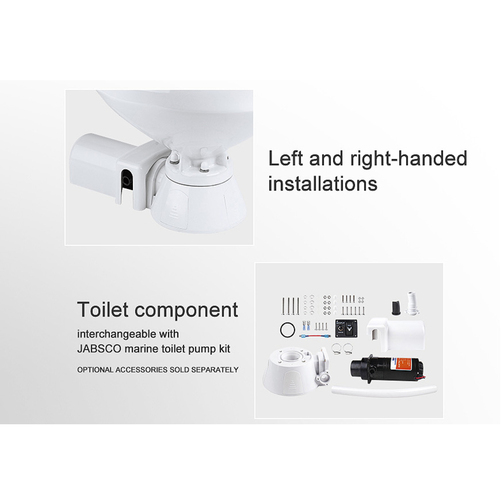

Seaflo toilets are simple to install, repair and maintain with a host of spare parts available, including seals, complete waste pump units, and gaskets.
