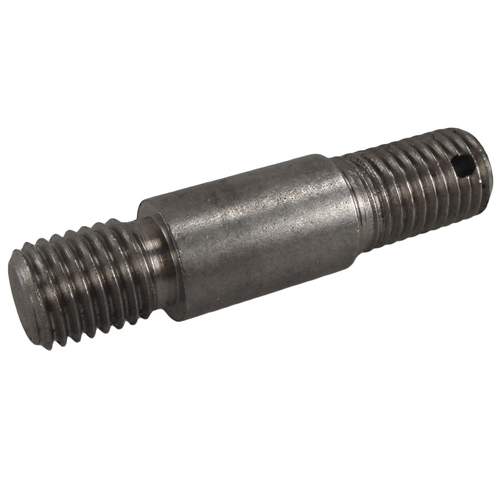

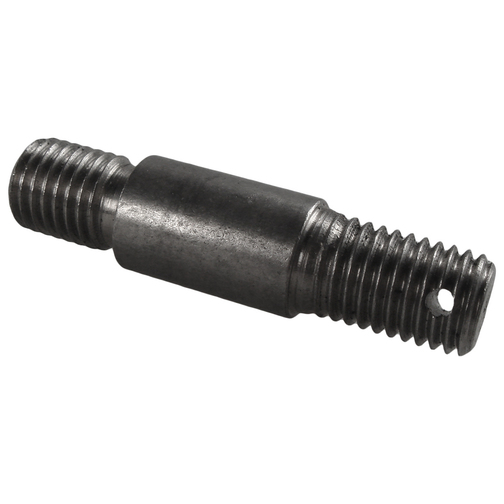

British Seagull® Outboard Tiller & Gear Stud screws into the crankcase to allow the tiller arm to be fixed into position or the casing tube for gear lever operation.
British Seagull® Outboard Tiller & Gear Stud screws into the British Seagull Outboard Crankcase to allow the tiller arm to be fixed into position or the British Seagull Outboard Drive Shaft Casing Tubes for the British Seagull Outboard Gear Operating Levers operation.
The British Seagull Outboard Tiller Arm sits on the tiller stud and is held into place with the British Seagull Outboard Tiller & Gear Lever Stud Spring Washer, the British Seagull Outboard Tiller & Gear Lever Stud Plain Washer, the British Seagull Outboard Tiller & Gear Lever Stud Castle Nut and the British Seagull Outboard Tiller & Gear Lever Stud Split Pin.
This part is also used on the British Seagull Outboard Gear Operating Levers for Forty, Century, Silver Century and Model 102 clutch drive British Seagull engines.
This part is suitable for all British Seagull Outboard engines except for QB Kingfisher & Osprey and Model 170 and Model 125.
Please note: Although the British Seagull Model 102 engines started being fitted with the British Seagull Outboard Model 102 Tiller Arm Stud some newer Model 102 engines also feature this tiller arm stud.
| Previous Historic Part Number | STD04001, C1391 & 1391 |
The British Seagull Crankcase, Tiller Arm, Spring Washer, Washer, Nut and Split Pin are for illustration purposes only and are available separetly from Sheridan Marine.
