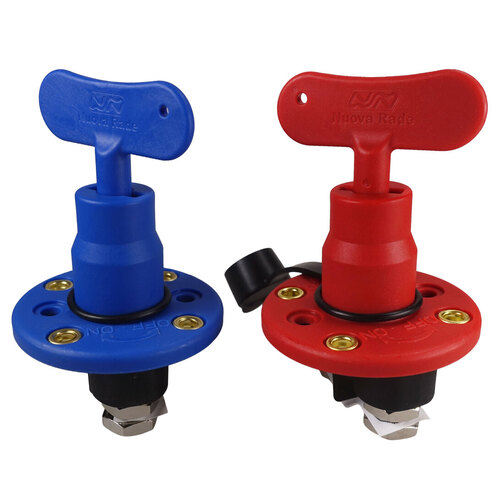

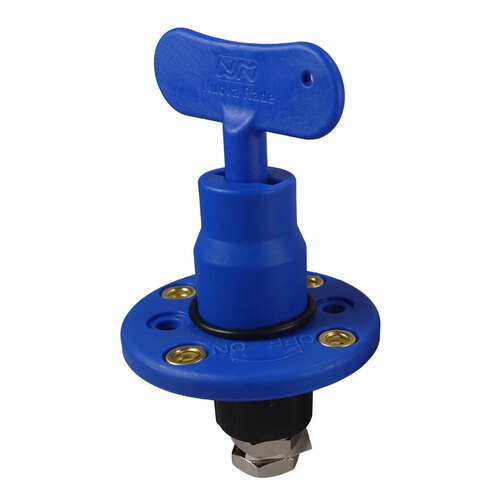

A low-voltage battery master switch with a removable key that can be wired into boat electrics to switch power on or off to boat systems with one turn.
A low-voltage battery master switch with a removable key that can be wired into boat electrics to switch power on or off to boat systems with one turn.
This boat battery master switch can be fitted to either a positive or negative circuit on 6-volt, 12-volt or 24-volt boat electrical systems.

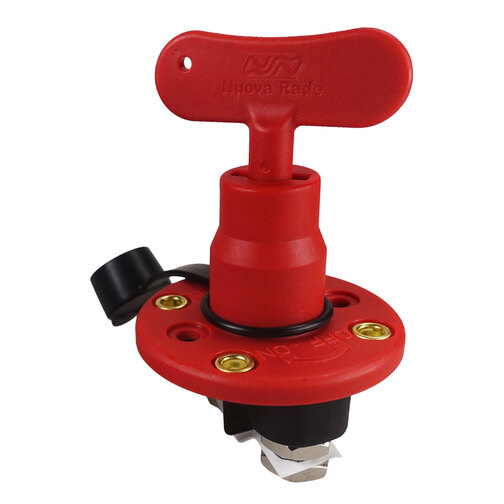

The removable key has dual locating studs on the shaft, so as it is inserted and turned to the 'On' position, it locks in place. The key has a convenient hole in the handle so the battery key can be placed onto a keyring.
The battery switch is constructed of robust plastic with metal terminals and two fixing holes to help ensure a sturdy fit to the installation. A rubber cap is also included, which can be placed over the keyhole when the battery switch is not in use. This can be useful to help prevent dirt from building up within the switch, which may prevent a clean circuit from being made and thus no power.
| EL480 | EL481 | |
| Continuous Load | 100 amps | 250 amps |
| Maximum Load (Peaking briefly) | 500 amps | 1000 amps |
Please note: Load Rating information is provided by the supplier.
| EL480 | EL481 | |
| Amperage | 100A | 250A |
| Height (with key inserted) | 73mm (106mm) | |
| Diameter | 65mm | |
| Key Slot Neck Length (including base thickness) | 35mm (41mm) | |

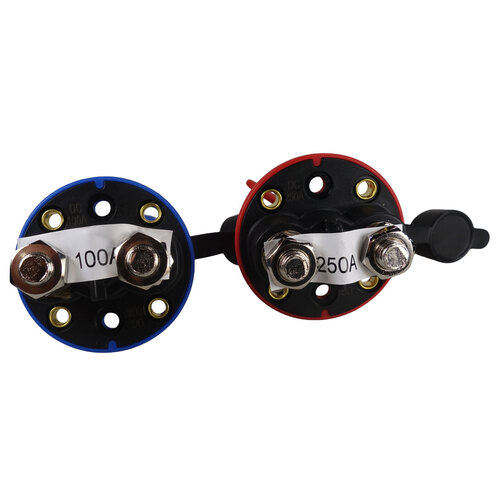

| Terminal Thread | M10 | |
| Terminal Diameter | 10mm | |
| Terminal Centres | 32mm | |
| Fixing Hole Centres | 35mm | |
It is important to select a suitable battery switch for your boats electrical system.
