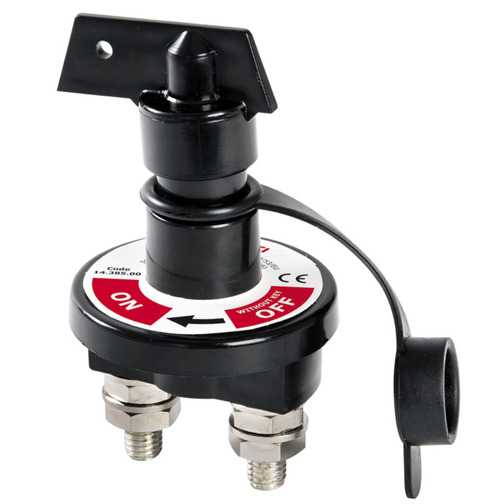

A heavy duty 280A battery master switch with a removable key, the battery switch is used to isolate your boat batteries.
The Osculati Heavy Duty Battery Master Switch is a heavy duty 280A battery master switch with a removable key, the battery switch is used to isolate your boat batteries when not in use.
This boat battery master switch can be fitted to either a positive or negative circuit with a continuous draw of 280A and a maximum load of 2500 amps up to 24 volts for 10 seconds, ideal for 12 volt or 24 volt boat electrical systems.
The Osculati Heavy Duty Battery Master Switch is CE type-tested in compliance with directive 2013 / 53 / EU (ISO 8846 MARINE - EN 28846).
The removable key has a locating stud on the shaft, so as it is inserted and turned to the 'On' position, it locks itself into place. The key features a convenient hole in the handle so the battery key can be placed onto a keyring. A spare key, the Osculati 14.385.33 Heavy Duty Black Handle Battery Switch Key is available separately as a replacement.
The Osculati Heavy Duty Battery Master Switch 14.385.00 can be found on some models of Interboats, including the Sloops, Intertender and Intercruisers.
| Continuous Load | 280A |
| Max Load @ 24V | 2500A |
| Maximum Voltage | 24v |
| Diameter | 66mm |
| Depth | 86mm |
| Terminal Thread | M10 |
| Terminal Thread Diameter | 10mm |
| Terminal Length | 26mm |
| Terminal Centres | 36mm |
It is important to select a suitable battery switch for your boats electrical system.
