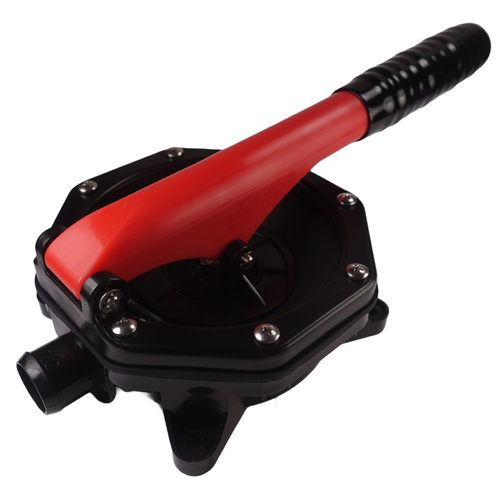

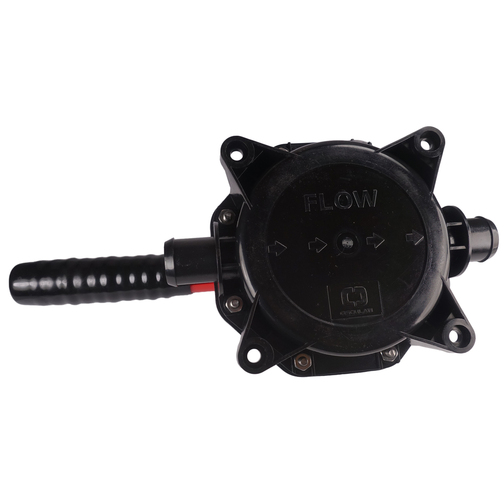

A compact lightweight manual bilge water transfer pump with 25mm (1") hose connections and a fixed handle for the transfer of water.
This Osculati compact boat bilge pump is particularly ideal for confined spaces in the bilge of your boat due to its design and configuration. With a relatively small footprint, this pump can be mounted to the deck or bulkhead with ease.
The Osculati Diaphragm hand pump works by using a flexible diaphragm that is moved up and down by a lever or handle. As the diaphragm is compressed, it creates a vacuum that draws the liquid into the pump chamber, and as it expands, it forces the liquid out through a discharge port.
Osculati diaphragm hand pumps are designed for use in marine and boating applications, and they are commonly used to pump water from bilges or other compartments on boats.
| Diaphragm Material | EPDM (ethylene propylene diene terpolymer) |
| Suitable for | Water only |
| Flow Rate | up to 55 Litres per minute (14.5 US Gallons per minute) |
| Height with Handle Down (Handle Up) | 100mm (230mm) |
| Width | 140mm |
| Length (Including Handle) | 190mm (310mm) |
| Fixing Hole Centres | 107mm |
| Suction Lift | 4m (13.5ft) |
| Discharge Head | 3m (10ft) |
| Hose Connection | 1" (25mm) |
| Material | Glass-filled Polypropylene |
