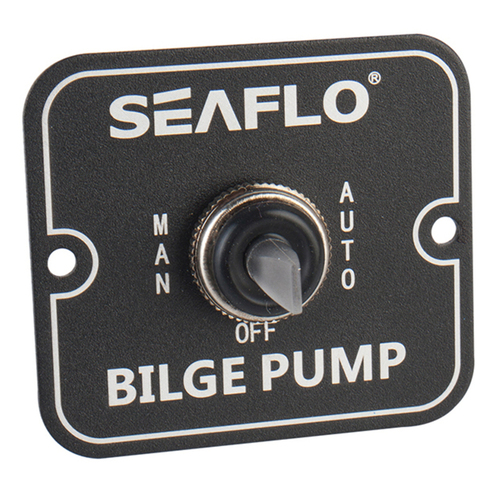

The Seaflo 3-way bilge pump switch is a three-position 'Manual / Off / Automatic' switch for automatically controlled 12/24/32 volt DC electric bilge pumps. This simple boat dashboard switch can control the bilge pump located lower in the bilge to activate and pump water from the bilge areas by selecting either Manual operation, which turns the pump on immediately, or Automatic operation. Automatic operation allows the pump to turn on and off independently when a float switch is connected to the same system and interrupts that the water level in the bilge requires the pump to activate; likewise, it will turn the pump off when the water level reaches adequate height.
This dashboard panel switch can be installed using the two fixing holes and wire terminals on the rear of the switch.
Switch Positions | Manual / Off / Automatic |
Height | 51mm |
Width | 57mm |
Fixing Hole Centres | 50mm |
Depth | 50mm |
Voltage | 12v / 24v / 32v |
Maximum Current | 15amps |
