Rule LoPro LP900D Bilge Pump
A low profile, ignition protection, non-automatic, 12 volt boat bilge pump with full rotation discharge non-return valves for up to 900 gallons per hour flow.
Add to your basket...
Rule LoPro LP900D Bilge Pump Information
The Rule LP900D has been certified ISO 8849 Marine Electric Bilge Pumps and ISO 8846 Marine Ignition Protection.

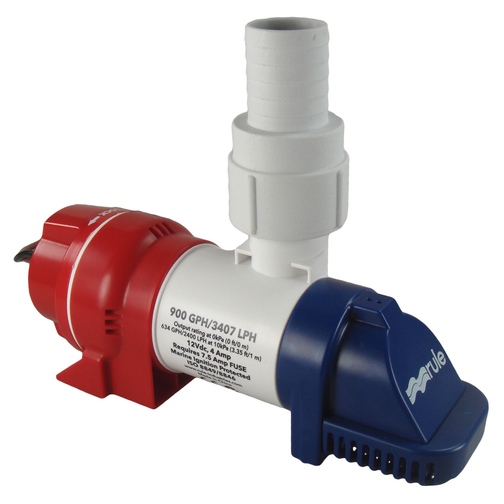

The Rule LoPro LP900D bilge pump is a low profile, ignition protected, non-automatic, 12 volt boat bilge pump with full rotation discharge non-return valves for up to 900 gallons per hour flow that can be easily maintained and cleaned.
The Rule LoPro LP900D Features:
- Low profile, only 60mm high
- Ignition Protected (ISO 8846)
- Pumps up to 900 gallons per hour (3407 Litres per hour)
- Maximum head of 3.4m
- Full rotation discharge with non-return valves
- Multiple outlet options (3/4" / 3/4" elbow / 1" / 1 1/8" hosetails)

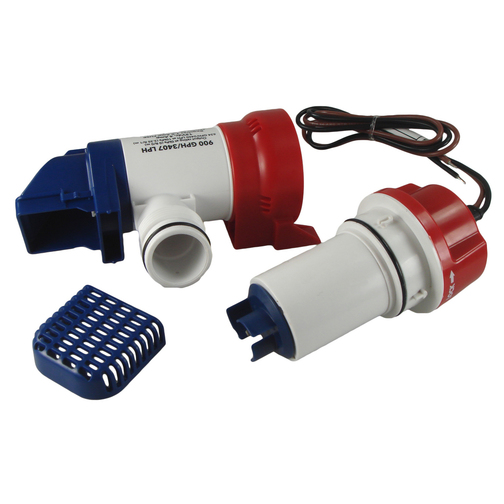

- Each section can be removed for cleaning and maintenance
- Removable gauze filter for easy cleaning
- 3 year manufacturers warranty.

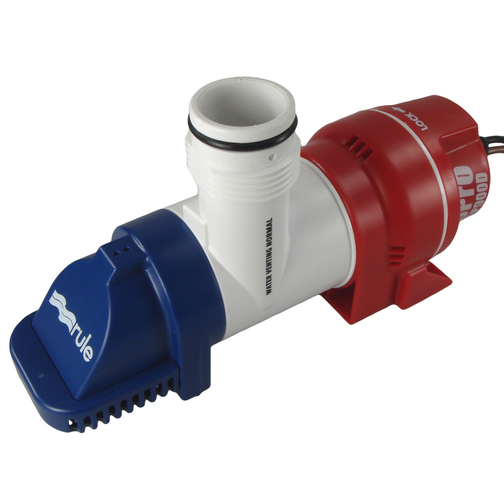

Designed to be able to be placed into the tightest areas of your boats bilge, this low profile bilge pump can be installed in several ways; lying flat, on its side on even upright. Constructed as three elements, the blue section, the white section and the red section this marine bilge pump offers universal applications.
With the full 360 degree rotation of each section there is no end to the possibilities of mounting this bilge pump. The white section, which features the discharge outlet thread, can be spun around so that the discharge angle suits your bilge design, allowing you to place the bilge pump in your preferred location whilst sending the outlet hose off in a completely different direction should you wish. Four outlet fittings are included with the pump, these can be attached to the pump thread to suit your chosen hose diameter (3/4", 1" & 1 1/8").
The blue section is the bilge pump gauze, this can also be fully rotated to suit the fitting installation. The gauze filter can also be removed for cleaning purposes and features a small ball bearing air valve on the top to allow the pump to breath and work more efficiently.

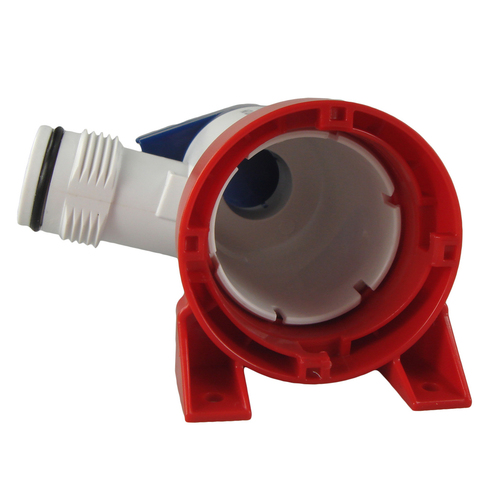

The red section is the bilge pump 12 volt motor. The motor section can also be removed from the other sections to aid with the cleaning and maintenance. Below the motor there are two fixing holes on flat brackets for installation too.
The Rule LoPro 900D has also been certified with ISO 8849 Marine Electric Bilge Pumps and ISO 8846 Marine Ignition Protection, a must for marine installations.
With the ability to pump up to 900 gallons per hour (3407 LPH) with a maximum head of 3.4m the pump is designed to remove water from your boats bilge and can be used with either an on/off switch or fitted with an automatic bilge switch (sold separately).
Rule LoPro LP900D Bilge Pump Specification
|Height||60mm (97mm with outlet up)|
|Depth||60mm (97mm with outlet sideways)|
|Outlet Adapter Hosetails||3/4" / 3/4" Elbow / 1" / 1 1/8"|
|Fuse Size||7.5 Amp Fuse required (not included)|
|Max Head||3.4m (11")|
|Gallons per Hour (Open Flow)||891 GPH (3373 LPH)|
|Gallons per Hour (at 1m)||634 GPH (2400 LPH)|
|Gallons per Hour (2m)||418 GHP (1582 LPH)|
ISO 8849 Marine Electric Bilge Pumps
ISO 8846 Marine Ignition Protection
Included in the Rule LoPro LP900D Bilge Pump
- Rule LoPro LP900D Bilge Pump
- 3/4" Outlet Staright Hosetail
- 3/4" Outlet Elbow Hosetail
- 1" Outlet Staright Hosetail
- 1 1/8" Outlet Staright Hosetail
- Instruction Manual
